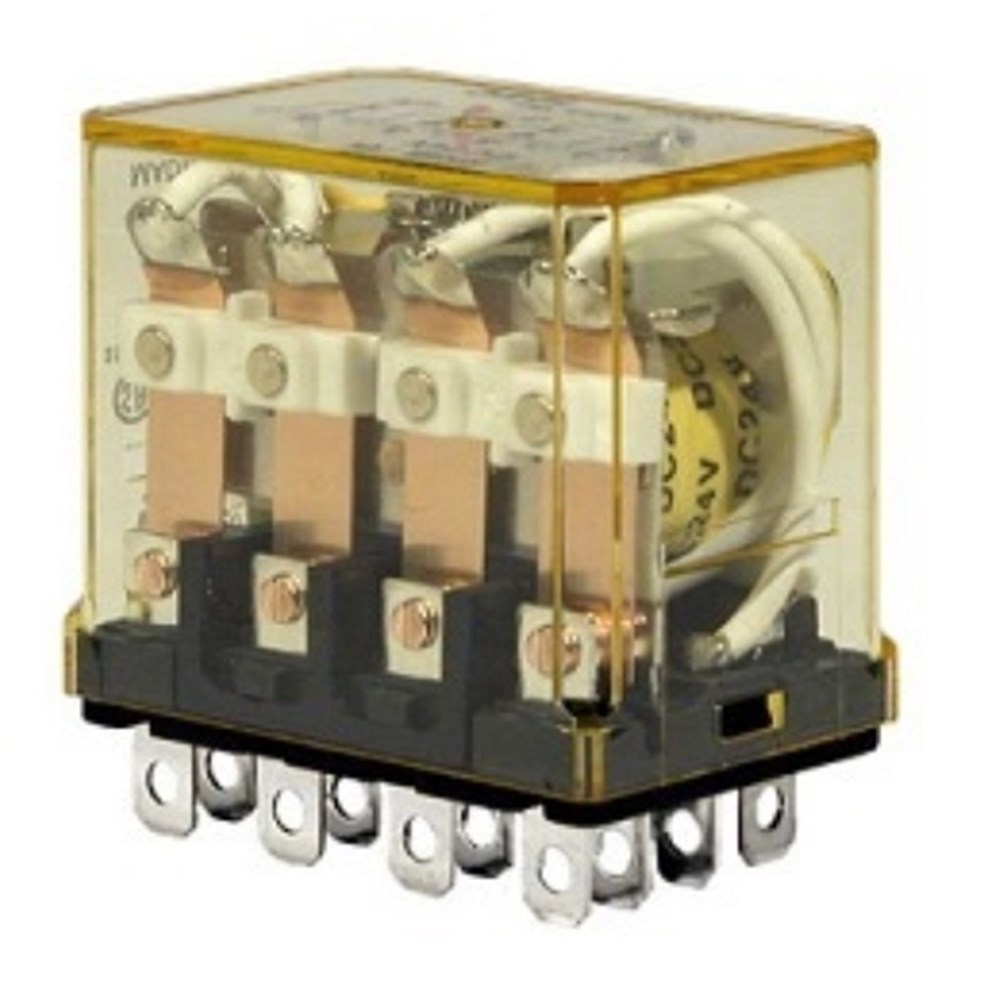

IDEC RH4B-UDC110 Power Relay 4PDT 110VDC Coil 10A Blade Terminal

Product Code: RH4B-UDC110

  • Rated for 110 VDC, 10 A
  • 4PDT contact configuration
  • Silver Cadmium Oxide contacts
  • CE, CSA, EN, UL approved
  • Long mechanical life: 50M operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Electrical Connection
Plug-in Terminal
Rated Voltage (Ur)
110 VDC
Rated Coil Current
15 mA
Contact Rated Current
10:00 AM

Mechanical

Contact Material
Silver cadmium oxide
Mounting
Socket Mounting

Dimensions & Physical Data

Depth
42 mm
Height
27.5 mm
Width
41 mm

Environmental

Operating Temperature
–25 to +70°C

Documents

IPD Product Catalogue V17
