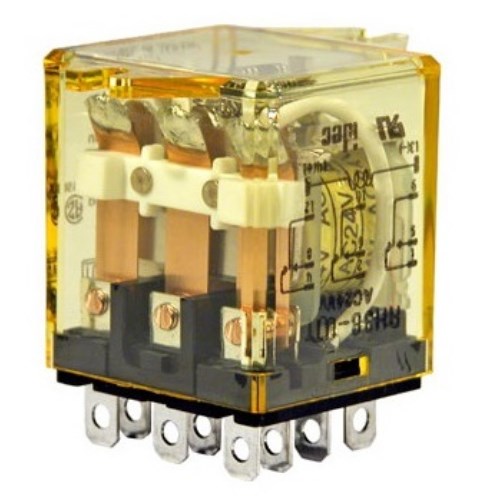

IDEC RH3B-UAC24 Power Relay 3PDT 24VAC Coil 10A Blade Terminal

Product Code: RH3B-UAC24

  • Operates at 24 VAC with a 10 A current capacity
  • 3PDT contact configuration for versatile use
  • Durable silver cadmium oxide contacts
  • Long electrical life of 200,000 operations
  • CE, CSA, EN, and UL certified for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
3
No. of N/C Contacts
3
No. of N/O Contacts
3
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
24V AC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
31mm

Environmental

Ambient Temperature
-25°C to 40°C

Documents

IPD Product Catalogue V17
