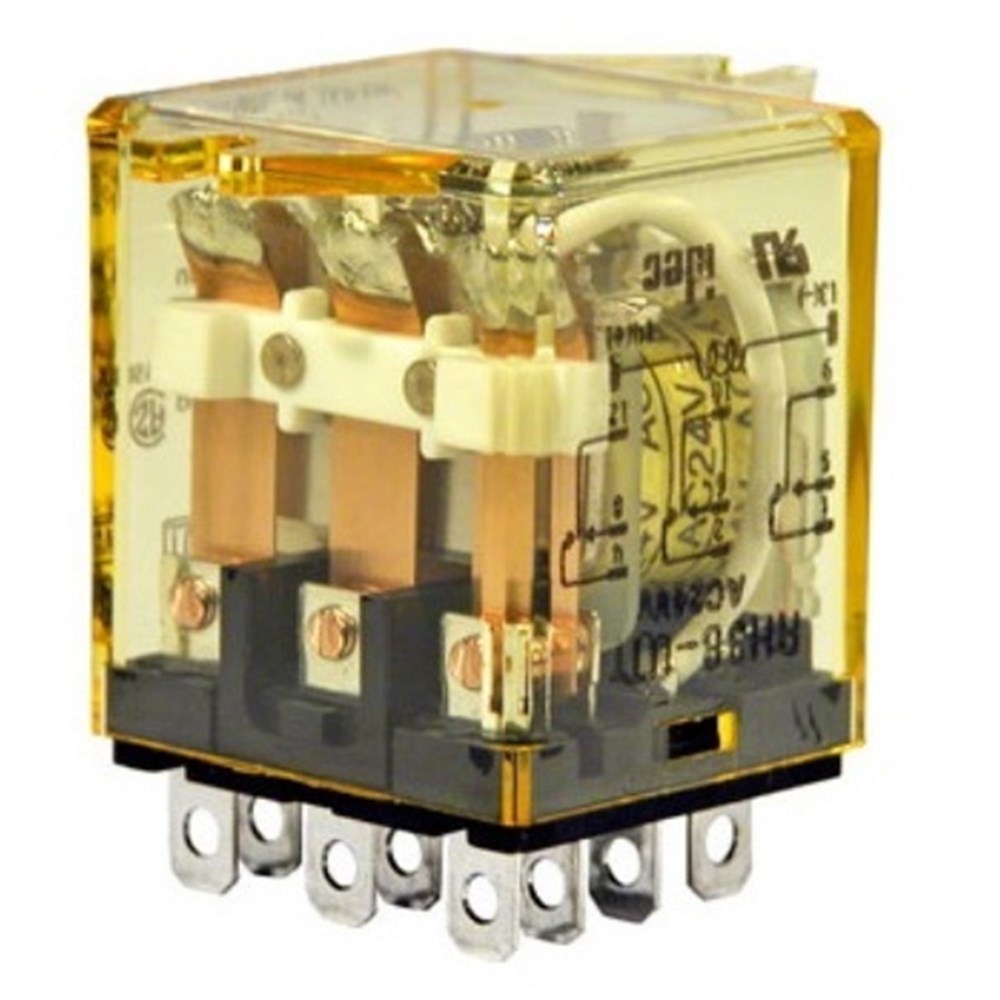

IDEC RH3B-UAC12 Power Relay 3PDT 12VAC Coil 10A Blade Terminal

Product Code: RH3B-UAC12

  • Rated for 12 VAC and 10 A
  • Durable with 3PDT contact config
  • Long electrical life: 200,000 ops
  • High insulation resistance: 100 MOhm
  • CE, CSA, EN, UL approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
3
No. of N/C Contacts
3
No. of N/O Contacts
3
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
12V AC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
31mm

Environmental

Ambient Temperature
-25°C to 40°C
