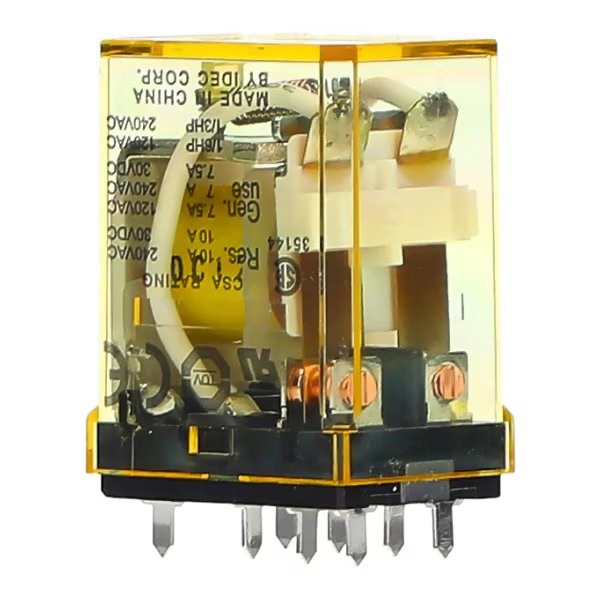

IDEC RH2V2-UDC100-110 Power Relay DPDT 100-110VDC Coil 10A PCB Terminal

Product Code: RH2V2-UDC100-110

  • Rated Voltage: 100-110 VDC
  • Rated Current: 10 A
  • DPDT Contact Configuration
  • PCB Terminal Type
  • Electrical Life: 200,000 ops
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
2
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
100-110V DC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
21mm

Environmental

Ambient Temperature
-25°C to 40°C

Documents

IPD Product Catalogue V17
