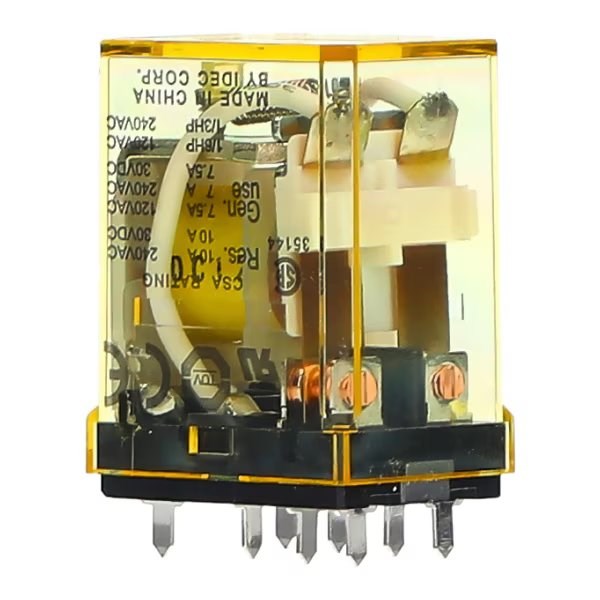

IDEC RH2V2-UAC24V Power Relay DPDT 24VAC Coil 10A PCB Terminal

Product Code: RH2V2-UAC24V

  • 24 VAC, 10 A rated power relay
  • DPDT contact config for versatile use
  • Silver Cadmium Oxide contacts ensure durability
  • High electrical life of 200,000 operations
  • CE, CSA, EN & UL certified for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
2
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
24V AC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
21mm

Environmental

Ambient Temperature
-25°C to 40°C

Documents

IPD Product Catalogue V17
