Products

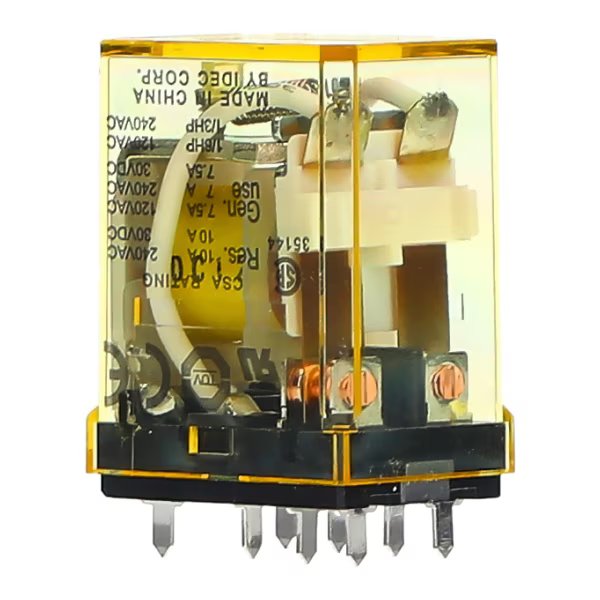

IDEC RH2V2-UAC220-240 Power Relay DPDT 220-240VAC Coil 10A PCB Terminal

Product Code: RH2V2-UAC220-240

  • Rated for 220-240 VAC, 10 A
  • Durable with 200k electrical ops
  • Fast 20 ms operating time
  • PCB terminals for easy integration
  • CE, CSA, EN, UL certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
2
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
220-240V AC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
21mm

Environmental

Ambient Temperature
-25°C to 40°C

Documents

IPD Product Catalogue V17
