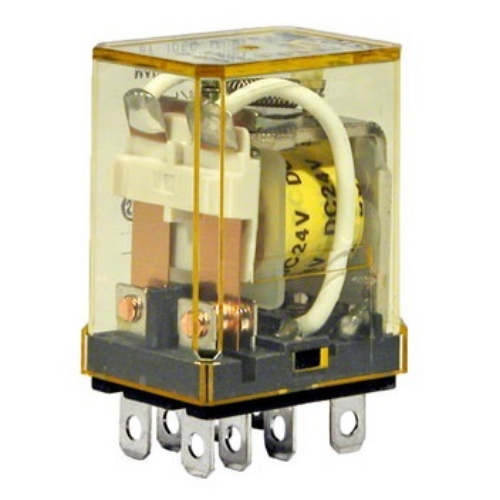

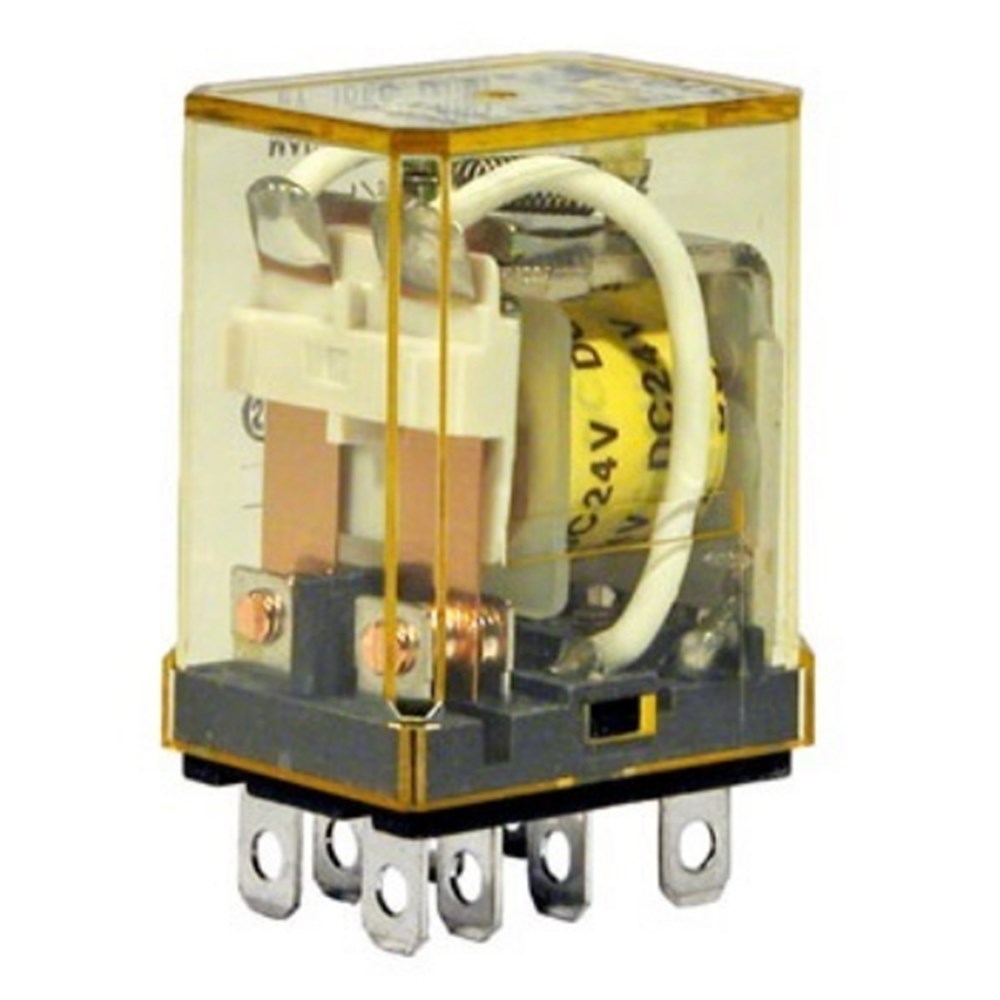

IDEC RH2B-UAC6 Power Relay DPDT 6VAC Coil 10A Blade Terminal

Product Code: RH2B-UAC6

  • 6 VAC, 10 A rated for reliable power handling
  • DPDT contact config with silver cadmium oxide
  • Fast 20 ms operating time
  • CE, CSA, RoHS approved for compliance
  • Operates in -25 to 40°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
2
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
6V AC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
21mm

Environmental

Ambient Temperature
-25°C to 40°C

Documents

IPD Product Catalogue V17
