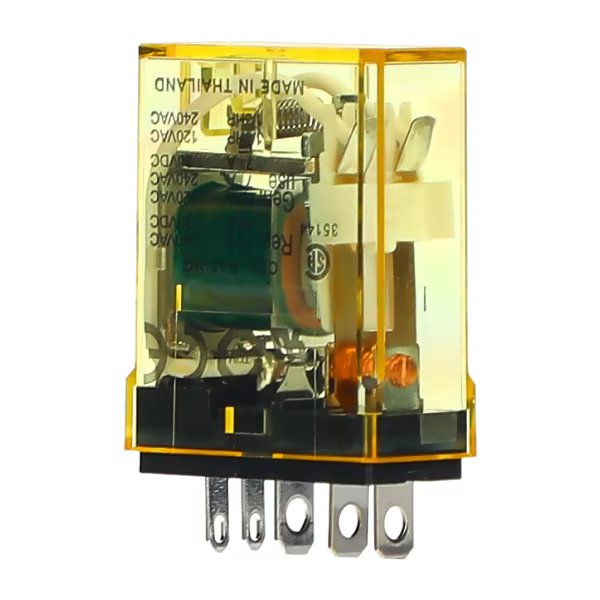

IDEC RH1B-UTAC24V Power Relay SPDT 24VAC Coil 10A Blade Terminal

Product Code: RH1B-UTAC24V

  • Rated for 24 VAC, 10 A
  • SPDT contact configuration
  • Quick 20 ms operating time
  • Durable with 200k electrical ops
  • CE, CSA, EN, UL approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
1
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
24V AC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
43.2mm
Height
35.6mm
Width
14.5mm

Environmental

Ambient Temperature
-25°C to 50°C

Documents

IPD Product Catalogue V17
