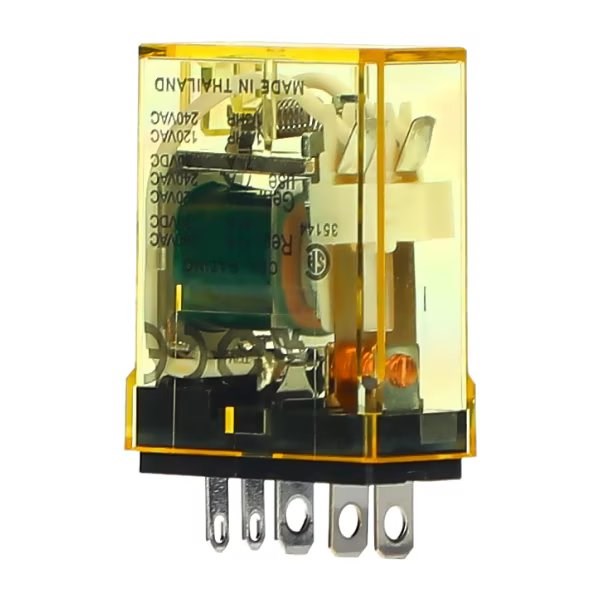

IDEC RH1B-UDC6 Power Relay SPDT 6VDC Coil 10A Blade Terminal

Product Code: RH1B-UDC6

  • Rated for 6 VDC, 10 A operation
  • Durable with 200k electrical operations
  • Fast 20 ms operating time
  • CE, CSA, EN, UL certified
  • Lightweight at just 24 g
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Relay
Brand
IDEC
Series
RH

Electrical

Actuating Voltage
80% max.
No. of Change-Over Contacts
1
No. of N/C Contacts
1
No. of N/O Contacts
1
Electrical Connection
Plug-in terminal
Rated Current (In)
10A
Rated Voltage (Ur)
6V DC (Coil)

Mechanical

Contact Material
Silver cadmium oxide/cadmium free (Ag-alloy)
Mounting
Din Rail/Panel/PC Board

Dimensions & Physical Data

Depth
27.5mm
Height
35.6mm
Width
14mm

Environmental

Ambient Temperature
-25°C to 50°C
