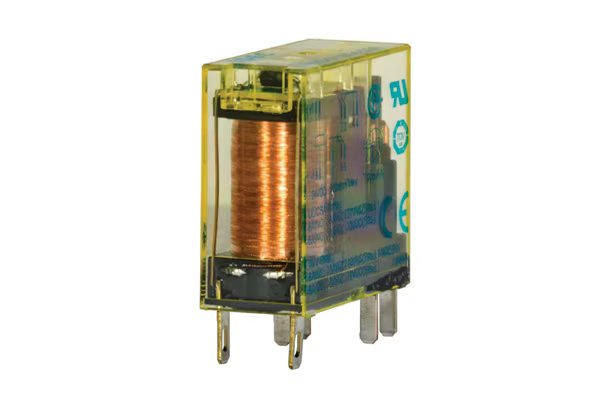

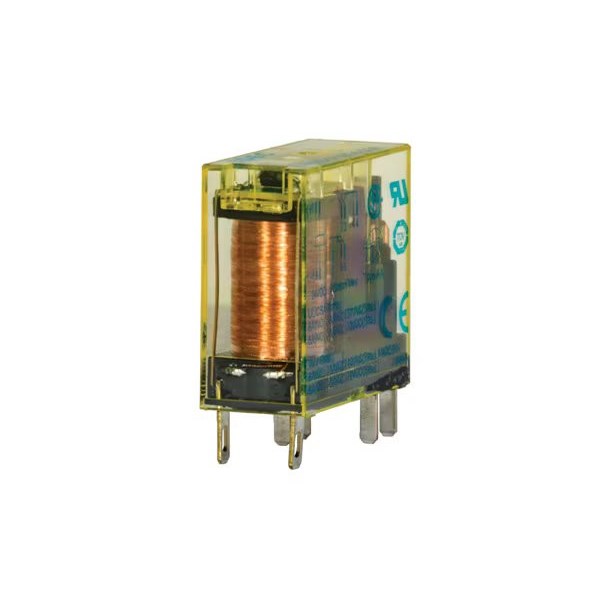

IDEC RF2S-1A1BD1-D24 Force Guided Relay 1NO-1NC 24VDC Coil 2-Pole 6A

Product Code: RF2S-1A1BD1-D24

  • Force guided relay with 1NO+1NC contacts
  • Rated for 6A current and 0.7W power
  • Coil operates at 24 VDC
  • Long electrical life: 100,000 ops
  • CE, CSA, UL approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Force - Guided Relay
Brand
IDEC
Series
RF2

Electrical

Actuating Voltage
24V DC
No. of N/C Contacts
1
No. of N/O Contacts
1
Nominal Current (In)
29 mA
Electrical Connection
Plug-in terminal
Change-Over Contacts
0

Mechanical

Contact Material
AgNi + Au-clad
Mounting
Socket mount

Dimensions & Physical Data

Depth
12.7mm
Height
28.4mm
Width
28mm

Environmental

Operating Temperature
-40°C to 70°C

Documents

IPD Product Catalogue V17
