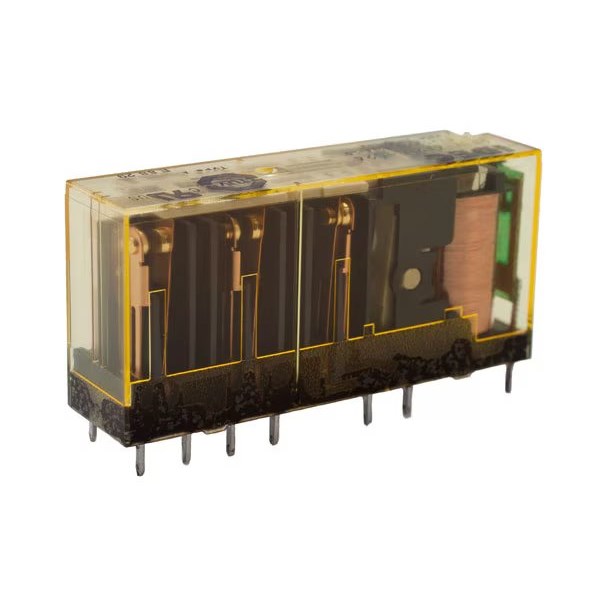

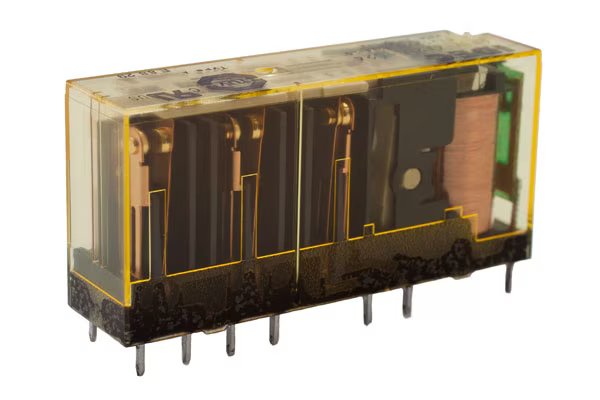

IDEC RF1V-5A1BL-D24 Force Guided Relay 5NO-1NC 24VDC Coil 6-Pole 6A

Product Code: RF1V-5A1BL-D24

  • Force guided relay for reliable operations
  • 5NO+1NC contact configuration
  • Operates at 24 VDC with 0.5 W power
  • Compact size: 50x24x13 mm
  • Durable with 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Force - Guided Relay
Brand
IDEC
Series
RF1 V

Electrical

Actuating Voltage
24 V DC
No. of N/C Contacts
1
No. of N/O Contacts
5
Electrical Connection
PCB terminal
Rated Current (In)
0.25
Rated Voltage (Ur)
30 V DC, 250 V AC
Change-Over Contacts
0

Mechanical

Contact Material
AgSnO2 (Au flashed)
Mounting
Panel, DIN rail or PCB

Dimensions & Physical Data

Depth
50 mm
Height
27.5 mm
Width
13 mm

Environmental

Operating Temperature
-40 to 85 degC

Documents

IPD Product Catalogue V17
