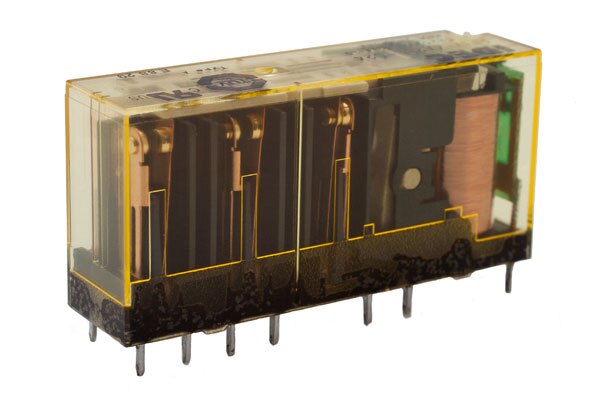

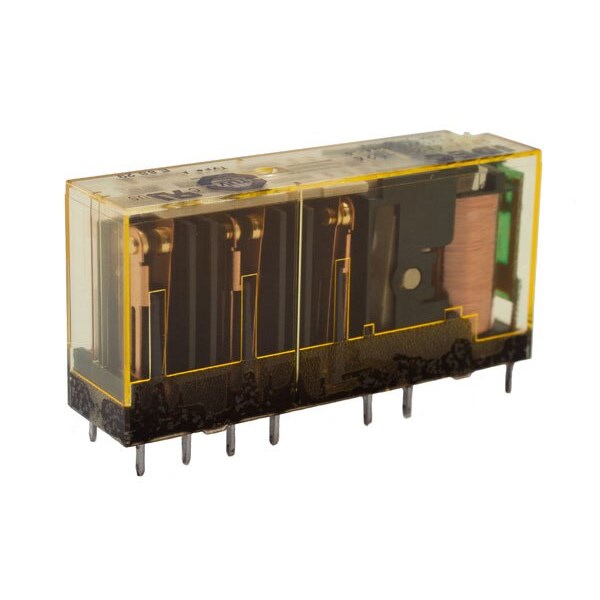

IDEC RF1V-3A3B-D24 Force Guided Relay 3NO-3NC 24VDC Coil 6-Pole 6A

Product Code: RF1V-3A3B-D24

  • Force guided with 3NO+3NC contact config
  • Rated coil voltage of 24 VDC
  • Compact size: 50mm x 24mm x 13mm
  • Durable: 10 million operations lifespan
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Force - Guided Relay
Brand
IDEC
Series
RF1 V

Electrical

Actuating Voltage
24 V DC
No. of N/C Contacts
3
No. of N/O Contacts
3
Nominal Current (In)
20.8 mA
Electrical Connection
PCB terminal
Rated Current (In)
0.25
Rated Voltage (Ur)
30 V DC, 250 V AC
Change-Over Contacts
0

Mechanical

Contact Material
AgSnO2 (Au flashed)
Mounting
Panel, DIN rail or PCB

Dimensions & Physical Data

Depth
50 mm
Height
27.5 mm
Width
13 mm

Environmental

Operating Temperature
-40 to 85 degC
