Products

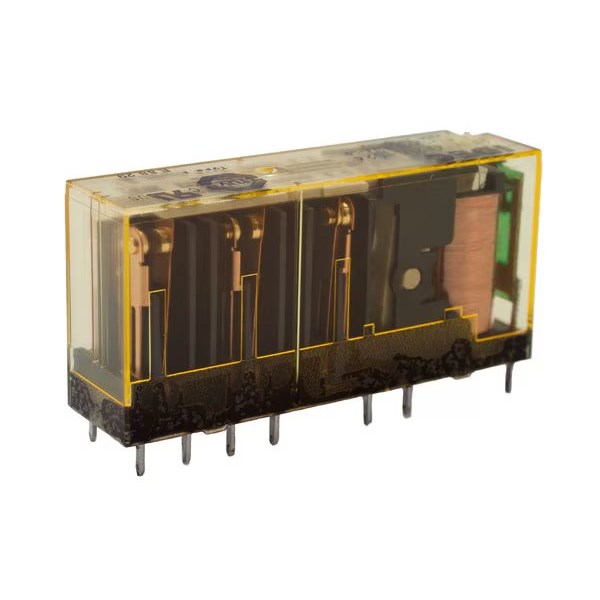

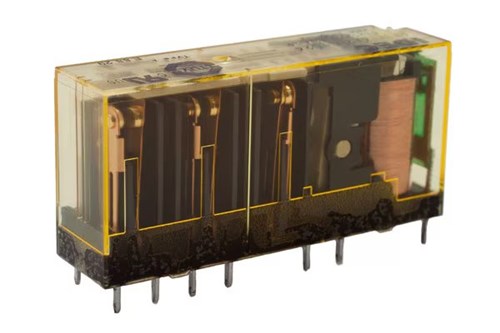

IDEC RF1V-3A1BL-D12 Force Guided Relay 3NO-1NC 12VDC Coil 4-Pole 6A

Product Code: RF1V-3A1BL-D12

  • Force guided relay with 3NO+1NC contacts
  • Compact size: 40x24x13 mm, weight 20 g
  • High mechanical life of 10 million ops
  • Wide temp. range: -40 to 85°C
  • Compliant with CSA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Force - Guided Relay
Brand
IDEC
Series
RF1 V

Electrical

Actuating Voltage
12 V DC
No. of N/C Contacts
1
No. of N/O Contacts
3
Electrical Connection
PCB terminal
Rated Current (In)
0.25
Rated Voltage (Ur)
30 V DC, 250 V AC
Change-Over Contacts
0

Mechanical

Contact Material
AgSnO2 (Au flashed)
Mounting
Panel, DIN rail or PCB

Dimensions & Physical Data

Depth
40 mm
Height
27.5 mm
Width
13 mm

Environmental

Operating Temperature
-40 to 85 degC

Documents

IPD Product Catalogue V17
