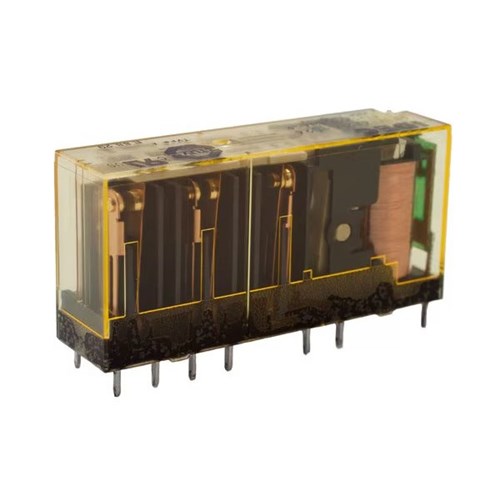

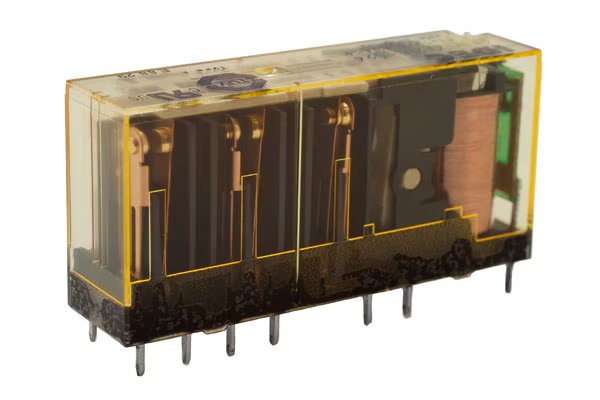

IDEC RF1V-3A1B-D24 Force Guided Relay 3NO-1NC 24VDC Coil 4-Pole 6A

Product Code: RF1V-3A1B-D24

  • Force guided relay with 3NO+1NC contacts
  • Compact size: 40x24x13 mm
  • Operates in -40 to 85°C, humidity 5-85%
  • Long mechanical life of 10 million ops
  • Meets CSA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Force - Guided Relay
Brand
IDEC
Series
RF1 V

Electrical

Actuating Voltage
24 V DC
No. of N/C Contacts
1
No. of N/O Contacts
3
Nominal Current (In)
15 mA
Electrical Connection
PCB terminal
Rated Current (In)
0.25
Rated Voltage (Ur)
30 V DC, 250 V AC
Change-Over Contacts
0

Mechanical

Contact Material
AgSnO2 (Au flashed)
Mounting
Panel, DIN rail or PCB

Dimensions & Physical Data

Depth
40 mm
Height
27.5 mm
Width
13 mm

Environmental

Operating Temperature
-40 to 85 degC

Documents

IPD Product Catalogue V17
