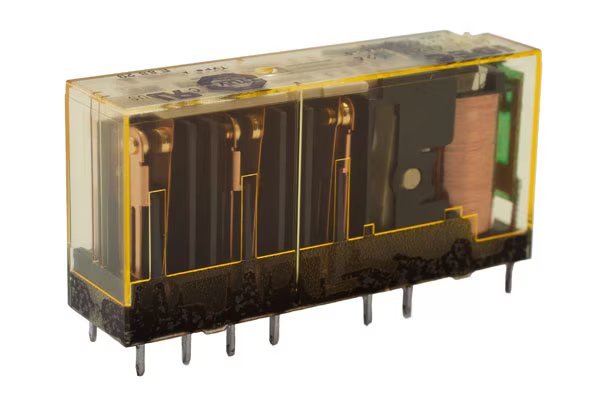

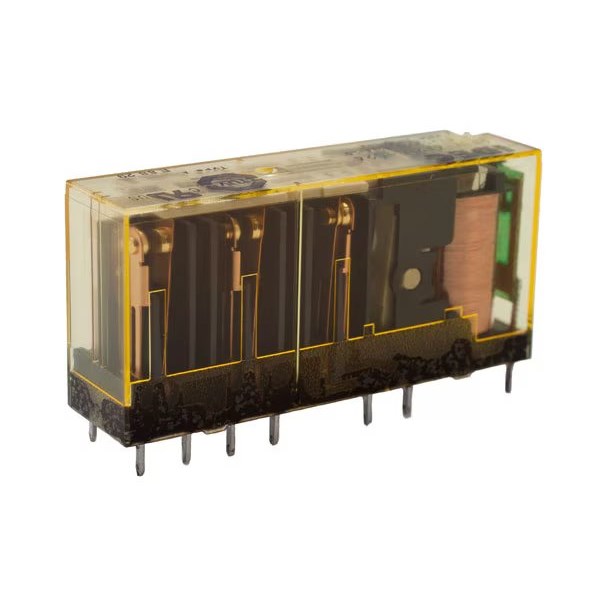

IDEC RF1V-2A2BL-D12 Force Guided Relay 2NO-2NC 12VDC Coil 4-Pole 6A

Product Code: RF1V-2A2BL-D12

  • Force guided relay with 2NO+2NC contacts
  • Compact size: 40mm x 24mm x 13mm
  • High mechanical life: 10 million operations
  • Wide operating temp range: -40 to 85°C
  • UL and CSA approved for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Force - Guided Relay
Brand
IDEC
Series
RF1 V

Electrical

Actuating Voltage
12 V DC
No. of N/C Contacts
2
No. of N/O Contacts
2
Electrical Connection
PCB terminal
Rated Current (In)
0.25
Rated Voltage (Ur)
30 V DC, 250 V AC
Change-Over Contacts
0

Mechanical

Contact Material
AgSnO2 (Au flashed)
Mounting
Panel, DIN rail or PCB

Dimensions & Physical Data

Depth
40 mm
Height
27.5 mm
Width
13 mm

Environmental

Operating Temperature
-40 to 85 degC

Documents

IPD Product Catalogue V17
