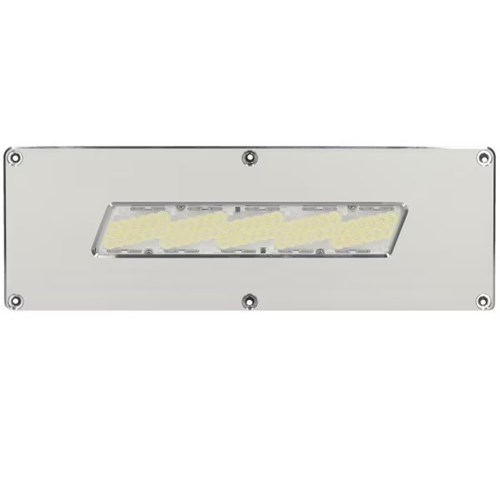

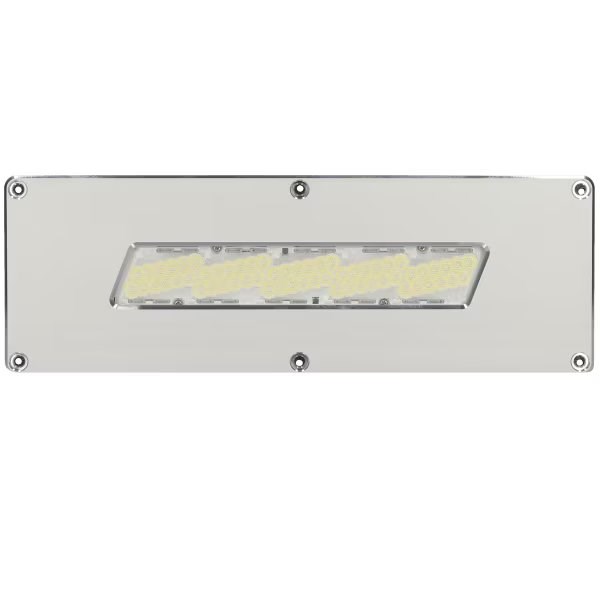

IDEC LF3D-FB2B1 LED Lighting 24V 9.2W Rear Standard Recessed Mount W/Rainforced Glass Daylight

Product Code: LF3D-FB2B1

  • LED machine light with 24V, 9.2W power.
  • Daylight illumination for clear visibility.
  • Operates in -30 to 55°C temperature range.
  • Rear standard recessed mounting design.
  • Complies with cULus and CE standards.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
LED Lighting
Brand
Idec
Series
LF3D

Electrical

Lamp Power
9.2W
Electrical Connection
M12 connector
Rated Voltage
24V DC

Mechanical

Housing Material
Aluminum

Dimensions & Physical Data

Depth
307mm
Height
27mm
Weight
770g
Width
80mm

Environmental

IP Rating
IP65, IP67, IP67G
Ambient Temperature
–30 to +55°C

Documents

IPD Product Catalogue V17
