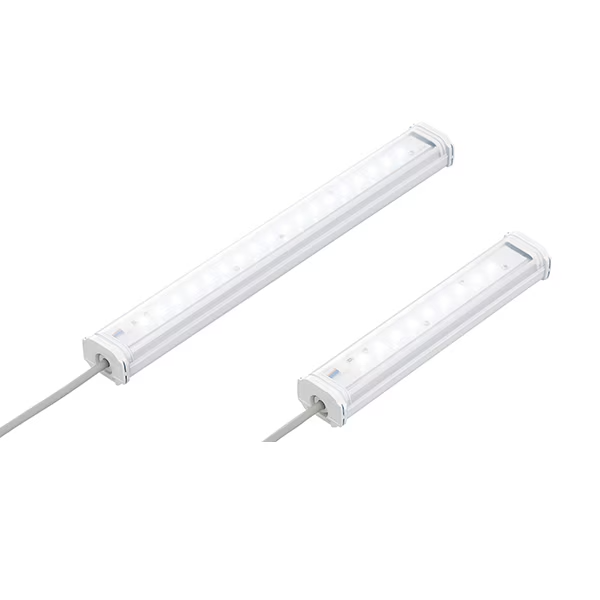

IDEC LF2BC4PBTHWW21M LED Illumination Unit White IP65 330mm D 1m L Cable 12-24VDC

Product Code: LF2BC4PBTHWW21M

  • Operates on 12-24 VDC with 4.9 W power
  • IP65 rated for dust and water protection
  • Cool white light at 6500 K colour temp
  • Compact size: 40 mm x 29 mm x 330 mm
  • cULus and CE approved for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illumination Unit
Brand
IDEC
Series
LF2B

Electrical

Lamp Power
4.9W
Electrical Connection
Cable
Rated Voltage (Ur)
12/24V DC

Mechanical

Housing Material
Cover: polycarbonate, End cover/cable gland: polyamide. Wire: PVC (AWG18×2C)

Dimensions & Physical Data

Height
31mm
Length
330mm
Weight
0.235kg
Width
45mm
Cable Length
1m

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 55°C

Documents

IPD Product Catalogue V17
