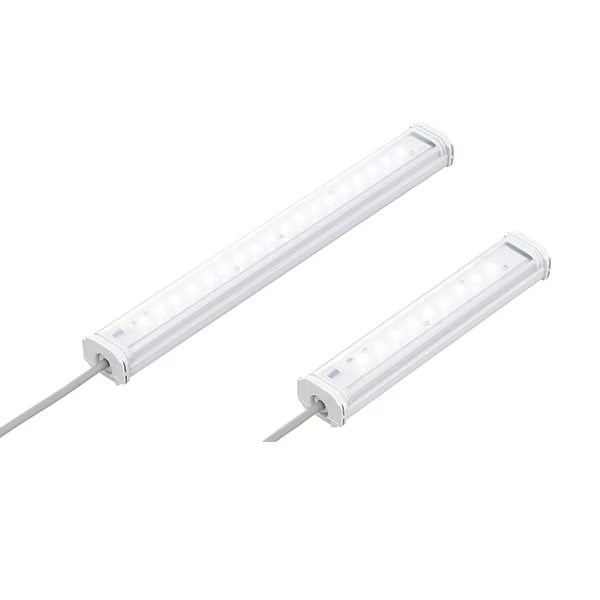

IDEC LF2B-F3PATHWW21M LED Illumination Unit Clear IP65 1080mm D 1m L Cable 100-240VAC

Product Code: LF2B-F3PATHWW21M

  • Wide voltage range: 100-240 VAC
  • Energy-efficient at 15.9 W power
  • IP65 rated for dust and water resistance
  • Cool white light with 6500 K temperature
  • Compact design: 40 mm width, 29 mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illumination Unit
Brand
Idec
Series
LF2B

Electrical

Cable Length
1m
Lamp Power
15.9W
Electrical Connection
Cable
Rated Voltage
100 to 240V AC

Mechanical

Housing Material
Cover: polycarbonate, End cover/cable gland: polyamide. Wire: PVC (AWG18×2C)

Dimensions & Physical Data

Height
31mm
Length
1080mm
Weight
645g
Width
45mm

Environmental

IP Rating
IP65
Ambient Temperature
–30 to +55°C

Documents

IPD Product Catalogue V17
