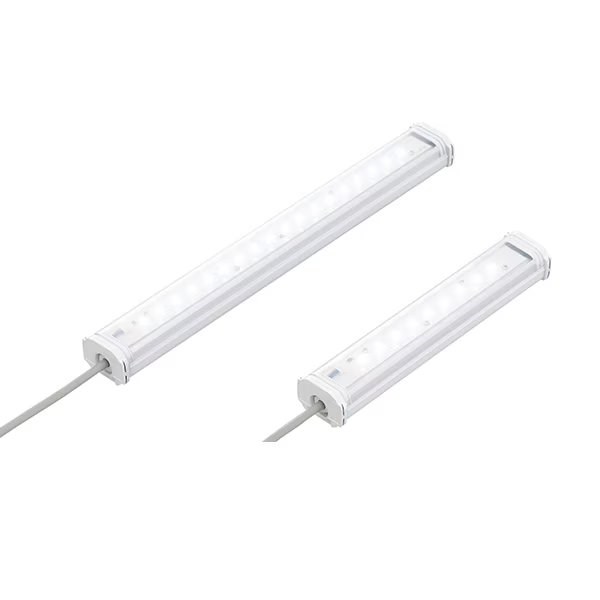

IDEC LF2B-D4PATHWW21M LED Illumination Unit White IP65 580mm D 1m L Cable 100-240VAC

Product Code: LF2B-D4PATHWW21M

  • Cool white LED light, 6500K color temp
  • Energy efficient at 7.8W power
  • Wide input voltage range: 100-240VAC
  • Durable IP65 protection rating
  • Compact size: 580x40x29mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illumination Unit
Brand
IDEC
Series
LF2B

Electrical

Lamp Power
7.8W
Electrical Connection
Cable
Rated Voltage (Ur)
100V to 240V AC

Mechanical

Housing Material
Cover: polycarbonate, End cover/cable gland: polyamide. Wire: PVC (AWG18×2C)

Dimensions & Physical Data

Height
31mm
Length
580mm
Weight
0.4kg
Width
45mm
Cable Length
1m

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 55°C

Documents

IPD Product Catalogue V17
