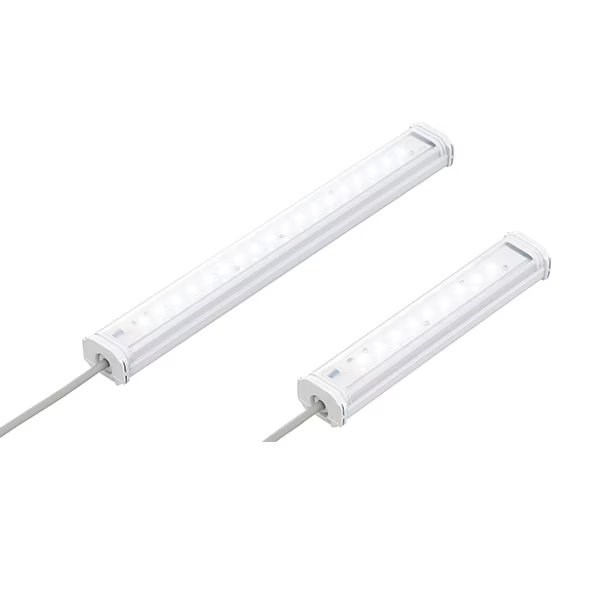

IDEC LF2B-B3PBTHWW21M LED Illumination Unit Clear IP65 210mm D 1m L Cable 12-24VDC

Product Code: LF2B-B3PBTHWW21M

  • Energy-efficient 2.6 W LED unit
  • Wide voltage range: 12-24 VDC
  • Robust IP65 protection rating
  • Cool white light at 6500 K
  • Compact size: 40x29x210 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illumination Unit
Brand
IDEC
Series
LF2B

Electrical

Lamp Power
2.6W
Electrical Connection
Cable
Rated Voltage (Ur)
12/24V DC

Mechanical

Housing Material
Cover: polycarbonate, End cover/cable gland: polyamide. Wire: PVC (AWG18×2C)

Dimensions & Physical Data

Height
31mm
Length
210mm
Weight
0.175kg
Width
45mm
Cable Length
1m

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 55°C
