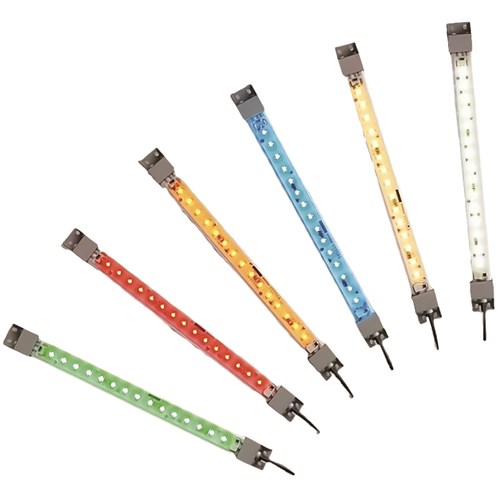

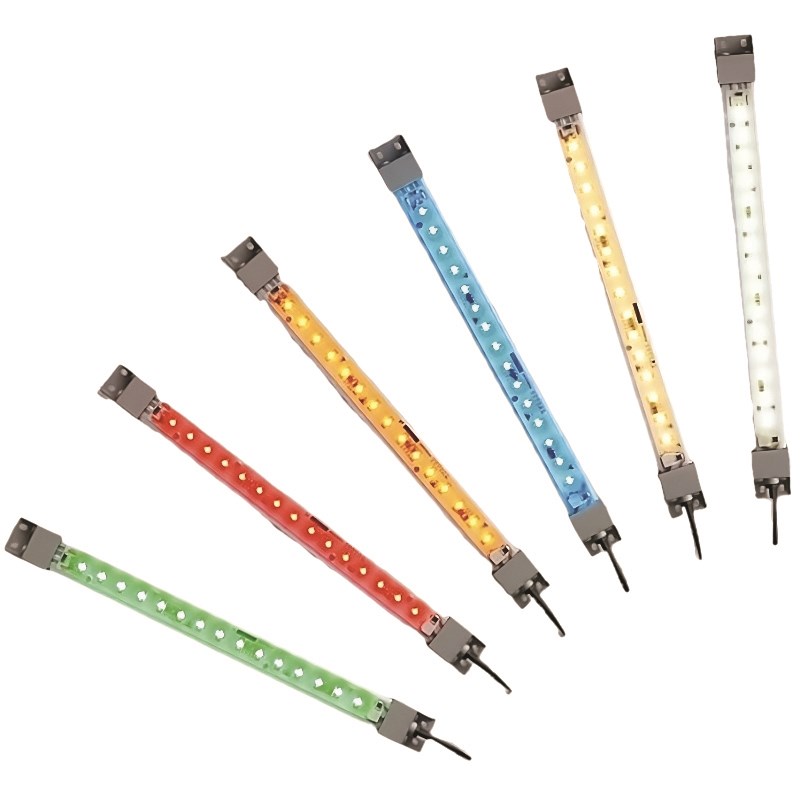

IDEC LF1BNC3P2TLWW21M LED Illumination Unit Clear IP65 330mm D 1m L Cable 24V

Product Code: LF1BNC3P2TLWW21M

  • 24V, 4.4W LED unit with warm white light
  • IP65 rating for dust and water resistance
  • Compact size: 27.5mm x 16mm x 330mm
  • Operates in -30 to 55°C temperature range
  • CE and cULus certified for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illumination Unit
Brand
Idec
Series
LF1B-N

Electrical

Cable Length
1m
Lamp Power
4.4W
Electrical Connection
Cable
Rated Voltage
24V DC
Illumination Colour
Warm white

Mechanical

Housing Material
Cover: polycarbonate, End cover/cable gland: polyamide, Wire: PVC

Dimensions & Physical Data

Height
16mm
Length
330mm
Weight
165g
Width
27.5mm

Environmental

IP Rating
IP65
Ambient Temperature
–30 to +55°C

Documents

IPD Product Catalogue V17
