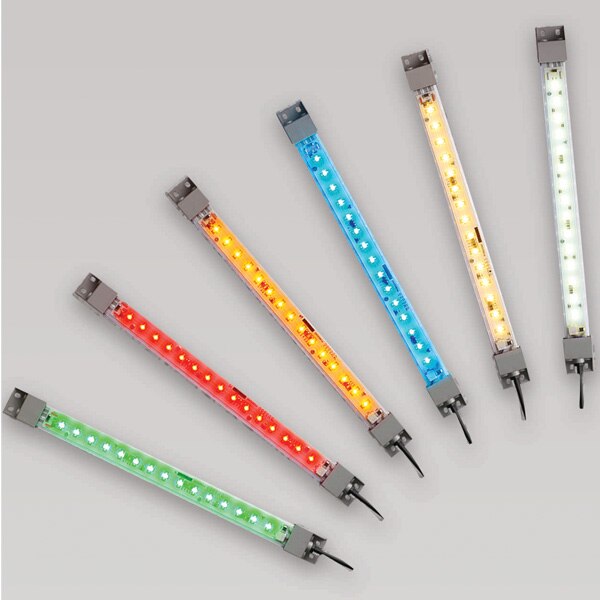

IDEC LF1B-NA3P2SHY21M Illumination Unit Clear IP65 134mm D 1m L Cable 24V

Product Code: LF1B-NA3P2SHY21M

  • Energy-efficient 1W LED unit
  • Operates at 24V with 70mA current
  • IP65 rating for dust and water resistance
  • Yellow illumination, clear cover design
  • Wide temp range: -30 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illumination Unit
Brand
IDEC
Series
LF1B-N

Electrical

Lamp Power
1W
Electrical Connection
Cable
Rated Voltage (Ur)
24V DC
Illumination Colour
Yellow

Mechanical

Housing Material
Cover: polycarbonate, End cover/cable gland: polyamide, Wire: PVC

Dimensions & Physical Data

Height
16mm
Length
134mm
Weight
0.095kg
Width
27.5mm
Cable Length
1m

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 55°C
