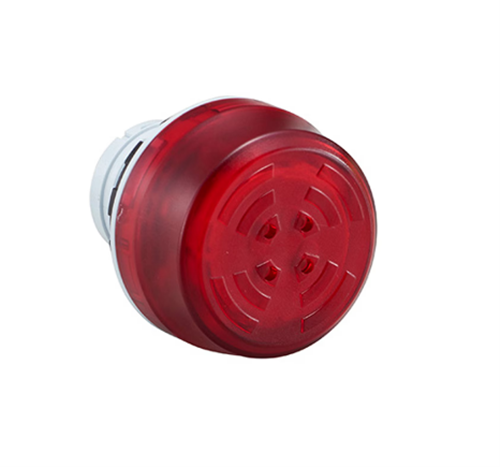

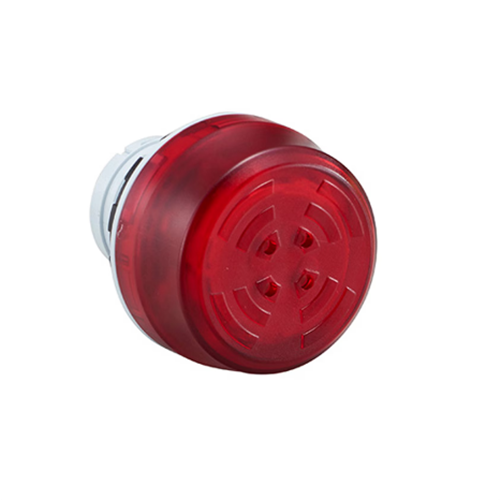

IDEC HW1Z-P1F2PQ4R Illuminated Buzzer 12 to 24 VDC RED 18mA

Product Code: HW1Z-P1F2PQ4R

  • Operates at 24 VDC, 18 mA
  • Red illumination for visibility
  • Compact size: 33.3 mm width/height
  • Push-in terminals for easy installation
  • IP65 rated for dust/water resistance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Illuminated Buzzer
Brand
IDEC
Series
HW

Electrical

Rated Current
Illuminated: 18 mA (24 VDC), 8 mA (12 VDC)Non Illuminated(Steady sound): 9 mA (24 VDC), 4 mA (12 VDC)(Intermittent sound): 7 mA (24 VDC), 3 mA (12 VDC)
Rated Voltage
12 to 24 VDC
Terminal Type
Push in terminal

Mechanical

Body Colour
Red
Functionality
Pulsation
Lamp Colour
RED
Loudness
90 dB min. at 0.1 m (24 VDC)70 dB min. at 1 m (24 VDC, equivalent value)84 dB min. at 0.1 m (12 VDC)64 dB min. at 1 m (12 VDC, equivalent value)
Sound Frequency
2,200 to 2,450 Hz

Environmental

IP Rating
IP54
Ambient Temperature
–20 to +50 °C

Documents

IPD Product Catalogue V17
