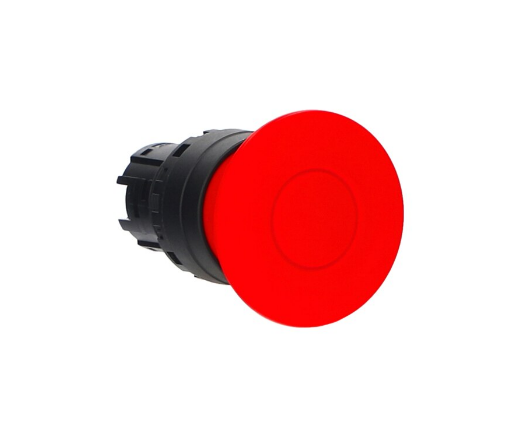

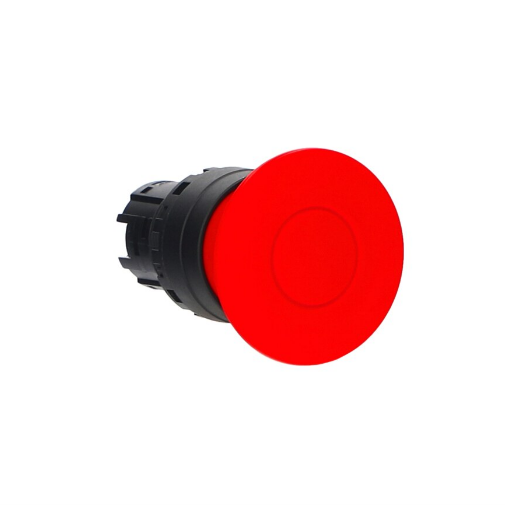

IDEC HW1B-Y2R HW Operator Switch 40 mm

Product Code: HW1B-Y2R

  • Non-illuminated emergency stop
  • Red colour for high visibility
  • Screw terminal connection
  • IP20/IP65 protection rating
  • Pull release method
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Switch
Brand
IDEC
Series
HW

Electrical

Illumination
Non-illuminated
Rated Current (In)
AC-12: (440 V) 2 A, (220 V) 6 A, (110 V) 10 A, (50 V) 10 A, (24 V) 10 AAC-15: (440 V) 1 A, (220 V) 3 A, (110 V) 5 A, (50 V) 7 A, (24 V) 10 ADC-12: (220 V) 1.1 A, (110 V) 2.2 A, (48 V) 5 A, (24 V) 10 ADC-13: (220 V) 0.6 A, (110 V) 1.1 A, (48 V) 2 A, (24 V) 10 A
Rated Thermal Current (Ith)
10:00 AM

Mechanical

Pushbutton Colour
Red
Pushbutton Material
Plastic
Pushbutton Type
Mushroom
Unlocking Method
Pull Release

Dimensions & Physical Data

Button Diameter (mm)
40 mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
