Specifications

Product Type

Emergency-Stop Pushbutton

Brand

IDEC

Series

No. of N/C Contacts 2	No. of N/O Contacts 0	Illumination Non-illuminated
Rated Current AC-12: (440 V) 2 A, (220 V) 6 A, (110 V) 10 A, (50 V) 10 A, (24 V) 10 AAC-15: (440 V) 1 A, (220 V) 3 A, (110 V) 5 A, (50 V) 7 A, (24 V) 10 ADC-12: (220 V) 1.1 A, (110 V) 2.2 A, (48 V) 5 A, (24 V) 10 ADC-13: (220 V) 0.6 A, (110 V) 1.1 A, (48 V) 2 A, (24 V) 10 A	Rated Voltage AC: 440 VAC, 220 VAC, 110 VAC, 50 VAC, 24 VACDC-12: 220 V, 110 V, 48 V, 24 V	Terminal Type Finger Safe Spring Up
Rated Thermal Current (Ith) 10 A

Pushbutton Colour Red	Pushbutton Material Plastic	Pushbutton Type Mushroom
Unlocking Method Twist Release

Button Diameter (mm)

40 mm

IP Rating

IP65

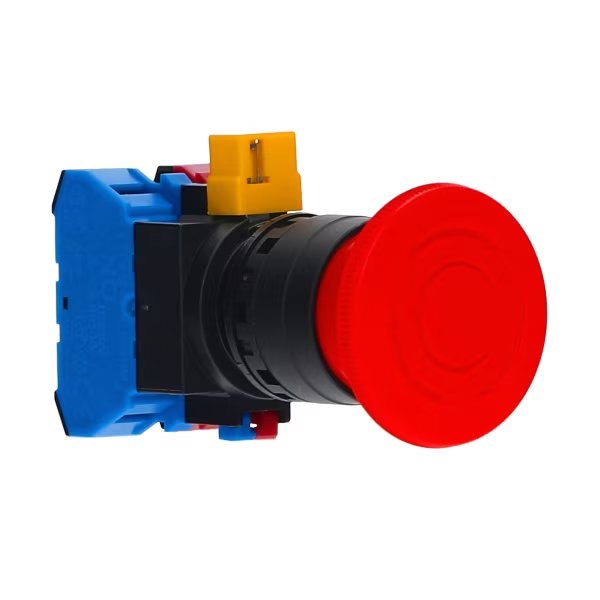

IDEC HW1B-V4F02-R HW Emergency-Stop Pushbutton 40 mm 0NO+2NC
