Product Code: HT4P-SLSPL-R0009

Black finish for sleek appearance
2NO contact configuration
Shock resistance: 147 ms
Vibration resistance: 5-8.4 Hz
IP54 protection rating

Specifications

General

Product Type

Tablet Mount Safety Device

Brand

IDEC

Series

HT4P

Electrical

Enabling Switch HE6B-M200Y	Output Ratings USB PD Source Output: 30W	Selector Switch 2 Positions
Stop Switch Colour Red	Input Ratings 24V DC for the main power supply	LED Indication Yes
Power Consumption Main power supply current draw is 2.0A max	Supply Voltage 24V DC

Mechanical

Housing Material

Plastic

Dimensions & Physical Data

Height

259 mm

Width

334 mm

Display Size

Compatible with 10 to 13-inch tablets

Environmental

Storage Temperature

-20 to +55°C

Operating Temperature

-10 to +55°C

IP Rating

IP54

Communication & Control

Ethernet Port Speed

10/100 Mbps

Ethernet Ports

USB Port

1 (Type-C )

Safety, Standards & Compliance

Compliance Standards

IEC/EN 60947-5-1/5/8, IEC/EN 61010-1

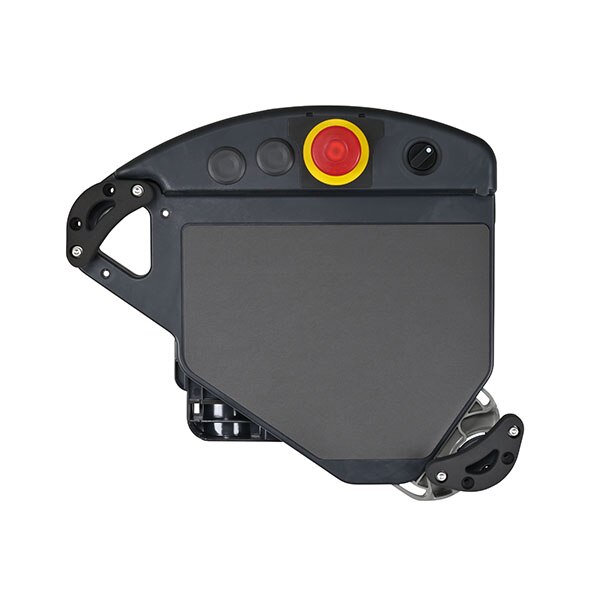

IDEC HT4P-SLSPL-R0009 Safety Commander 2 Positions

Product Code: HT4P-SLSPL-R0009
