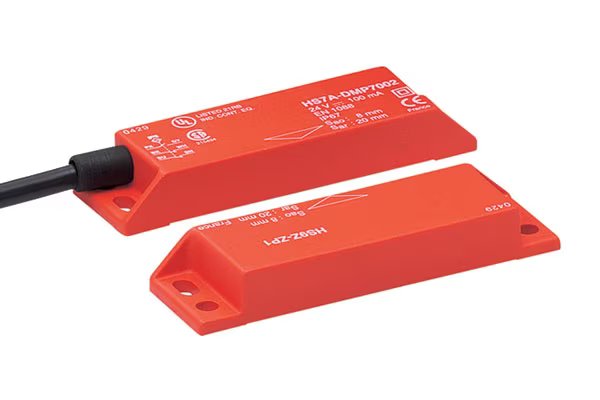

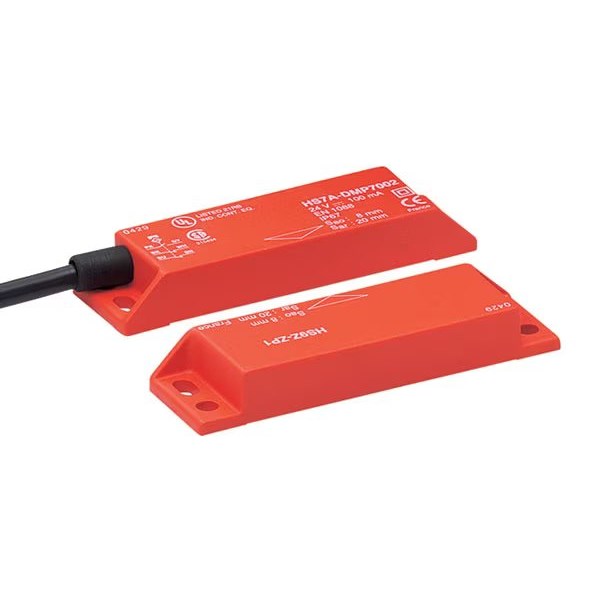

IDEC HS7A-DMP7015 Coded Magnetic Switch 2NO+1NC 5m Cable

Product Code: HS7A-DMP7015

  • Safety interlock switch with 2NO+1NC contacts
  • Durable PBT housing, IP67 rated
  • Operates in -25 to 85°C temp range
  • Withstands vibrations from 10-150 Hz
  • Comes with a 5 m cable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Coded magnetic safety switch
Brand
IDEC
Series
HS7A-DMP

Electrical

Cable Length
5 m
No. of N/C Contacts
1
No. of N/O Contacts
2
Rated Current
100 mA
Rated Voltage
24 V DC

Mechanical

Actuator Type
HS9Z-ZP1
Housing Colour
Red
Housing Material
PBT

Dimensions & Physical Data

Depth
88 mm
Height
13 mm
Width
25 mm

Environmental

Operating Temperature
-25 to +85 °C (no freezing)
IP Rating
IP67

Documents

IPD Product Catalogue V17
