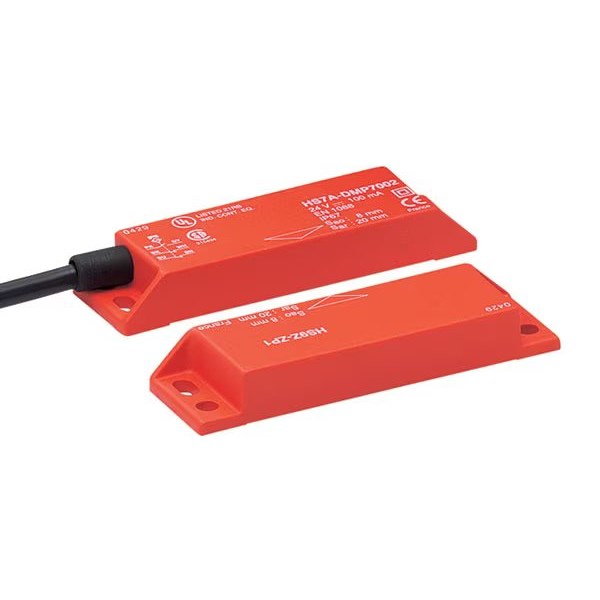

IDEC HS7A-DMP5012 Coded Magnetic Switch 1NO+2NC 2m Cable

Product Code: HS7A-DMP5012

  • Safety interlock switch with 1NO+2NC contacts
  • Durable PBT housing for robust protection
  • IP67 rated for excellent dust and water resistance
  • Operates in temperatures from -25 to 85°C
  • Vibration resistant from 10 to 150 Hz
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Coded magnetic safety switch
Brand
IDEC
Series
HS7A-DMP

Electrical

Cable Length
2 m
No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current
100 mA
Rated Voltage
24 V DC

Mechanical

Actuator Type
HS9Z-ZP1
Housing Colour
Red
Housing Material
PBT

Dimensions & Physical Data

Depth
88 mm
Height
13 mm
Weight
180 g
Width
25 mm

Environmental

Operating Temperature
-25 to +85 °C (no freezing)
IP Rating
IP67

Documents

IPD Product Catalogue V17
