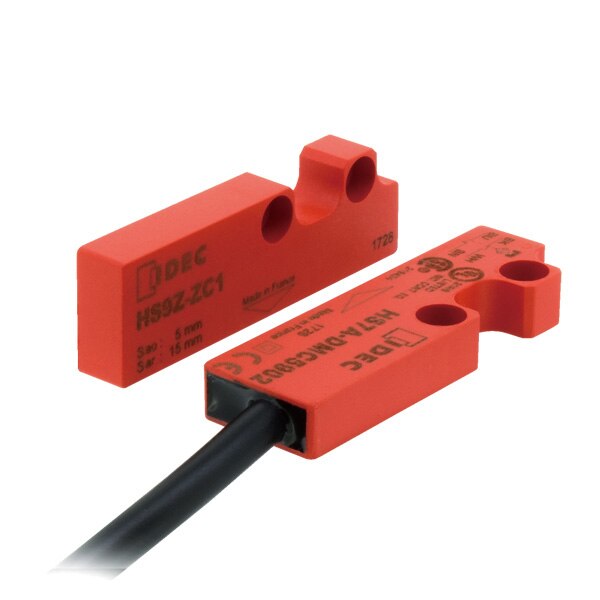

IDEC HS7A-DMC5912 Coded Magnetic Switch 1NO+1NC 2m Cable

Product Code: HS7A-DMC5912

  • Safety interlock switch for secure operations
  • Durable PBT housing material
  • IP67 protection against dust and water
  • Operates in -25 to 85°C temperature range
  • Vibration resistance from 10 to 150 Hz
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Coded magnetic safety switch
Brand
IDEC
Series
HS7A-DMC

Electrical

Cable Length
2 m
No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current
100 mA
Rated Voltage
24 V DC

Mechanical

Actuator Type
HS9Z-ZC1
Housing Colour
Red
Housing Material
PBT

Dimensions & Physical Data

Depth
51 mm
Height
7 mm
Weight
100 g
Width
16 mm

Environmental

Operating Temperature
-25 to +85 °C (no freezing)
IP Rating
IP67

Documents

IPD Product Catalogue V17
