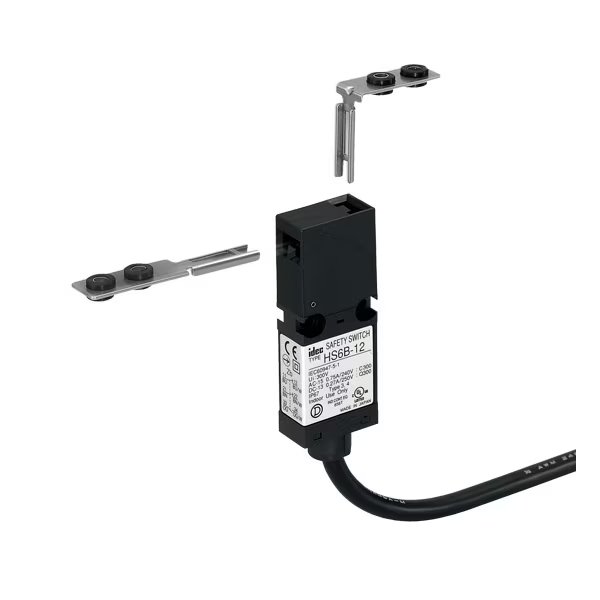

IDEC HS6B-12B03 Subminiature Interlock Switch 1NO+2NC 3m Cable

Product Code: HS6B-12B03

  • Rated current of 2.5 A
  • Contact config: 1NO+2NC
  • IP67 protection rating
  • Operational temp: -25 to 70°C
  • Mechanical life of 1 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS6B

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current
2.5 A
Rated Voltage
30 V, 125 V, 250 V
Terminal Type
Integral cable

Mechanical

Cable Entry
Pre-wired cable, 3m
Housing Material
Plastic

Dimensions & Physical Data

Depth
78 mm
Height
15 mm
Weight
270 g
Width
30 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
(watertight)

Documents

IPD Product Catalogue V17
