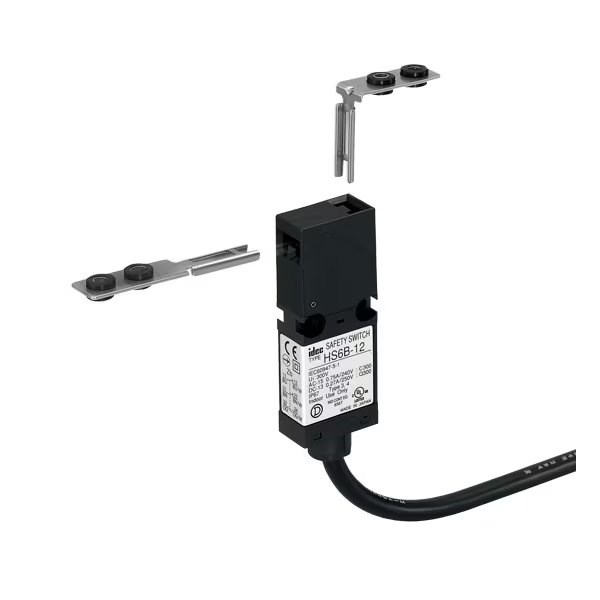

IDEC HS6B-11B03 Subminiature Interlock Switch 1NO+1NC 3m Cable

Product Code: HS6B-11B03

  • Durable with 1 million mechanical cycles
  • High protection: IP67 rated
  • Operates in -25 to 70°C range
  • TUV, UL, and CCC approved standards
  • Comes with a 3 m cable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS6B

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
2.5A
Rated Voltage (Ur)
30V, 125V, 250V
Terminal Type
Integral cable

Mechanical

Cable Entry
Integral cable (3 m)
Housing Material
Plastic

Dimensions & Physical Data

Depth
78mm
Height
15mm
Weight
0.27kg
Width
30mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
