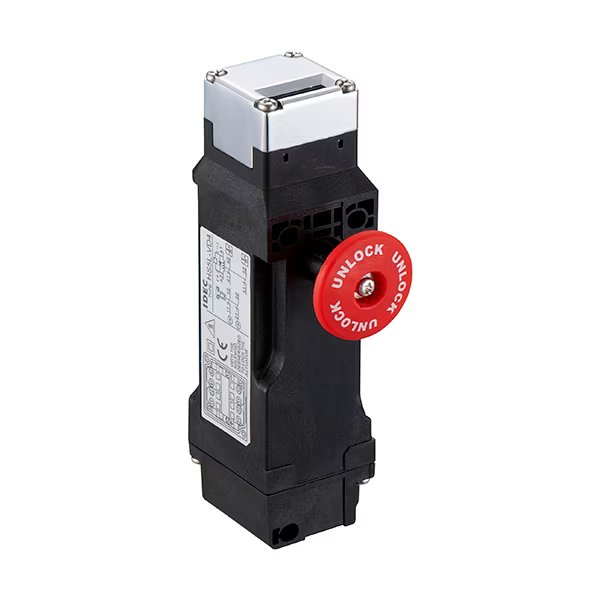

IDEC HS5L-XG7Y4M-G Safety Interlock Switch 1NO+1NC

Product Code: HS5L-XG7Y4M-G

  • Durable with 2 million cycle mechanical life
  • IP67 protection against dust and water
  • Operates in temperatures from -40 to 80°C
  • TUV, UL, and c-UL approved for safety standards
  • Rated insulation voltage of 250 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
IDEC
Series
HS5L

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.2A
Rated Voltage (Ur)
24V DC
Terminal Type
Spring clamp terminal

Mechanical

Actuator Type
Separate HS9Z actuator
Cable Entry
M20
Guard Locking Force
1,400N

Dimensions & Physical Data

Depth
33mm
Height
127mm
Weight
0.3kg
Width
35mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
