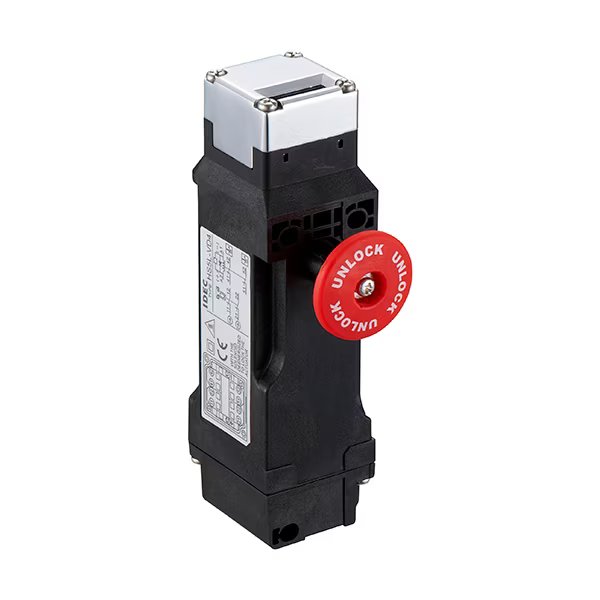

IDEC HS5L-VD44M-G Safety Interlock Switch 2NC

Product Code: HS5L-VD44M-G

  • Durable with 2 million mechanical cycles
  • Operates in -40 to 80°C temperature range
  • IP67 protection against dust and water
  • TUV, UL, c-UL listed for safety compliance
  • Rated insulation voltage of 250 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
IDEC
Series
HS5L

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
0
Rated Current
200 mA
Rated Voltage
24 V DC
Terminal Type
Spring clamp terminal

Mechanical

Actuator Type
Separate HS9Z actuator
Cable Entry
M20
Guard Locking Force
1,400 N

Dimensions & Physical Data

Depth
33 mm
Height
127 mm
Weight
300 g
Width
35 mm

Environmental

Operating Temperature
-25 to 55 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
