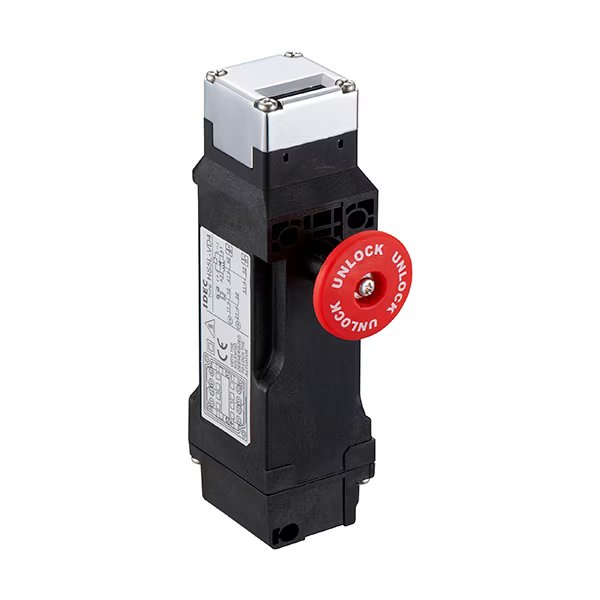

IDEC HS5L-VA44LM-G Safety Interlock Switch 1NO+1NC

Product Code: HS5L-VA44LM-G

  • Safety interlock switch for secure operations
  • Dual contacts: 1NO+1NC configuration
  • Durable with 2 million mechanical cycles
  • IP67 rated for robust protection
  • Wide temp range: -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
IDEC
Series
HS5L

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.2A
Rated Voltage (Ur)
24V DC
Terminal Type
Spring clamp terminal

Mechanical

Actuator Type
Separate HS9Z actuator
Cable Entry
M20
Guard Locking Force
1,400N

Dimensions & Physical Data

Depth
33mm
Height
127mm
Weight
0.3kg
Width
35mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
