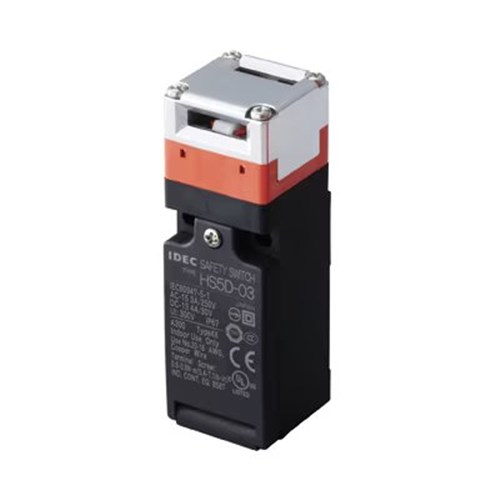

IDEC HS5D-12ZRNP Miniature Interlock Switch 1NO+2NC

Product Code: HS5D-12ZRNP

  • Safety interlock switch with IP67 protection
  • Operates in -30 to 70°C temperature range
  • Durable mechanical life of 1 million cycles
  • Rated current of 10 A with 300 V insulation
  • Shock resistance up to 1000 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS5D

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
10 A
Rated Voltage (Ur)
30 V, 125 V, 250 V
Terminal Type
M3 screw terminals

Mechanical

Cable Entry
PG13.5 conduit
Housing Material
Plastic (metal head)

Dimensions & Physical Data

Depth
91 mm
Height
30 mm
Weight
110 g
Width
30 mm

Environmental

Operating Temperature
-30 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
