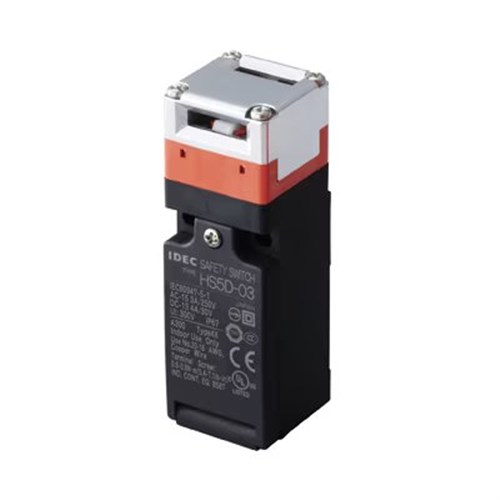

IDEC HS5D-03ZRNM Miniature Interlock Switch 3NC

Product Code: HS5D-03ZRNM

  • Safety interlock switch for secure operations
  • Durable with 1M mechanical cycles
  • IP67 rated for dust and water resistance
  • Operates in -30 to 70°C temperature range
  • Compact design, weighs only 80g
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS5D

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
10 A
Rated Voltage (Ur)
30 V, 125 V, 250 V
Terminal Type
M3 screw terminals

Mechanical

Cable Entry
M20 conduit
Housing Material
Plastic (metal head)

Dimensions & Physical Data

Depth
91 mm
Height
30 mm
Weight
110 g
Width
30 mm

Environmental

Operating Temperature
-30 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
