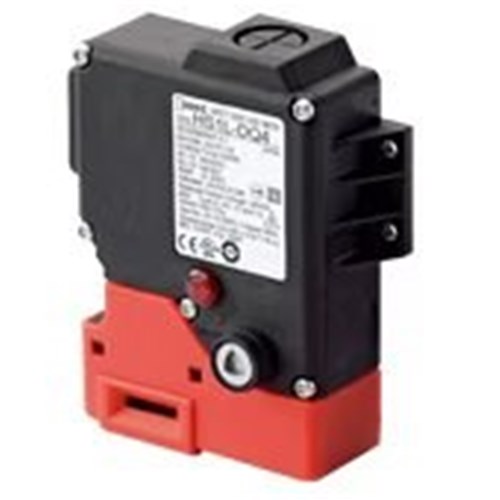

IDEC HS1L-DT7Y4KMSRMG Solenoid Lock Switch 24VAC/VDC 1NC+1NC+1NO

Product Code: HS1L-DT7Y4KMSRMG

  • Safety interlock switch for secure operations
  • Dual 1NC+1NC+1NO contact configuration
  • High protection with IP67 rating
  • Operational temp up to 55°C
  • TUV, UL, c-UL, and CCC approved standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
IDEC
Series
HS1L

Electrical

No. of N/C Contacts
6
No. of N/O Contacts
0
Rated Current (In)
0.2A
Rated Voltage (Ur)
24V DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Key/Tongue
Cable Entry
M20
Guard Locking Force
3000N
Housing Colour
Red and Black
Housing Material
Zinc die-cast

Dimensions & Physical Data

Depth
35mm
Height
129mm
Weight
0.45kg
Width
104mm

Environmental

Operating Temperature
-20°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
