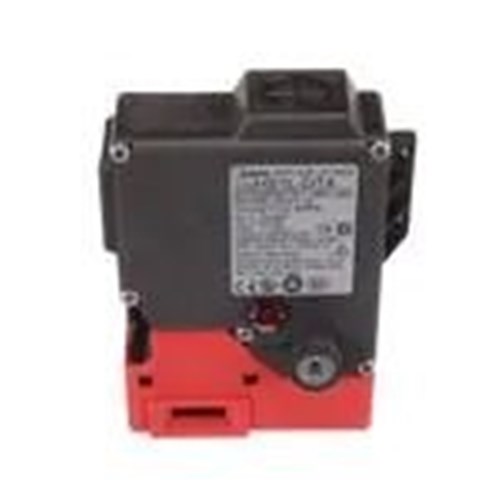

IDEC HS1L-DT44KMSRM-R Spring Lock Switch 24VAC/VDC 1NC+1NC+1NO

Product Code: HS1L-DT44KMSRM-R

  • Safety interlock switch for secure operations
  • 24 VAC/VDC rated voltage
  • 1NC+1NC+1NO contact configuration
  • IP67 protection against dust and water
  • Durable with 1,000,000 mechanical cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
IDEC
Series
HS1L

Electrical

No. of N/C Contacts
6
No. of N/O Contacts
0
Rated Current (In)
0.2A
Rated Voltage (Ur)
24V DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Separate HS9Z actuator
Cable Entry
M20
Guard Locking Force
3,000N

Dimensions & Physical Data

Depth
35mm
Height
129mm
Weight
0.45kg
Width
104mm

Environmental

Operating Temperature
-20°C to 55°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
