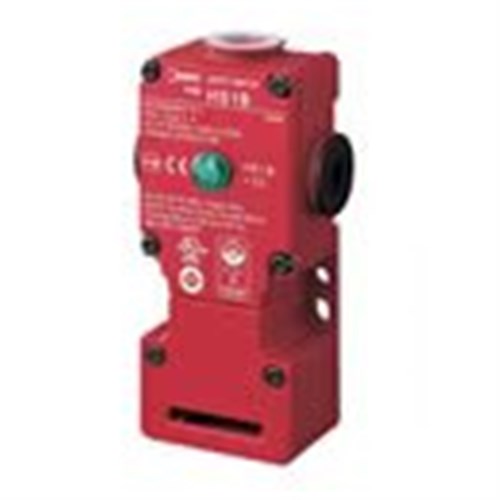

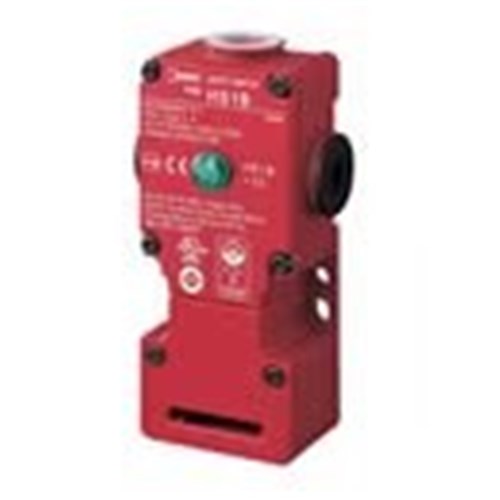

IDEC HS1B-11R Safety Interlock Switch 1NC+1NO

Product Code: HS1B-11R

  • Safety switch with 1NC+1NO contacts
  • Durable, 100,000 electrical cycles
  • IP67 protection for harsh environments
  • Handles vibration: 10-55 Hz
  • Withstands shock up to 1000 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS1B

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
10 A
Rated Voltage (Ur)
30 V, 125 V, 250 V
Terminal Type
Screw terminals

Mechanical

Cable Entry
G1/2 conduit (x3 ports)
Housing Material
Die-cast aluminium

Dimensions & Physical Data

Depth
40 mm
Height
125 mm
Weight
280 g
Width
64 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
