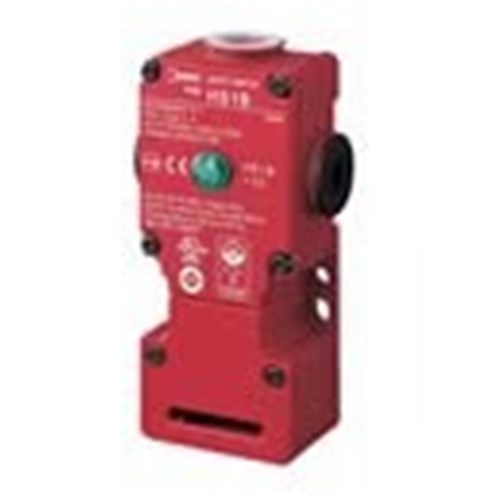

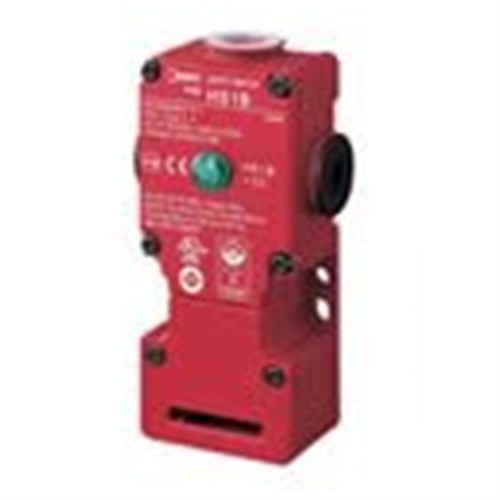

IDEC HS1B-02R Safety Interlock Switch 2NC

Product Code: HS1B-02R

  • 2NC contact configuration for safety
  • Durable with 100,000 electrical cycles
  • High protection rating of IP67
  • Operates in 45-85% humidity range
  • Robust against shock and vibration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS1B

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
10 A
Rated Voltage (Ur)
30 V, 125 V, 250 V
Terminal Type
Screw terminals

Mechanical

Cable Entry
G1/2 conduit (x3 ports)
Housing Material
Die-cast aluminium

Dimensions & Physical Data

Depth
40 mm
Height
125 mm
Weight
280 g
Width
64 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
