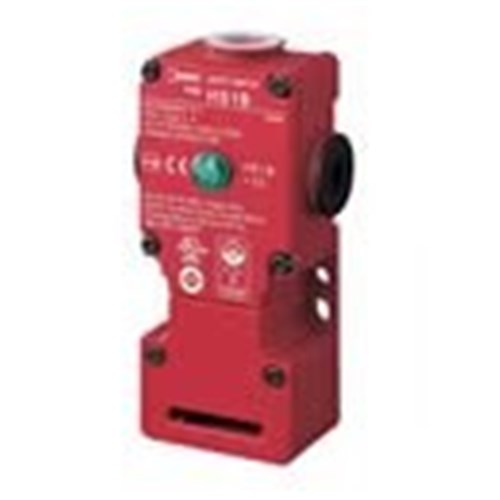

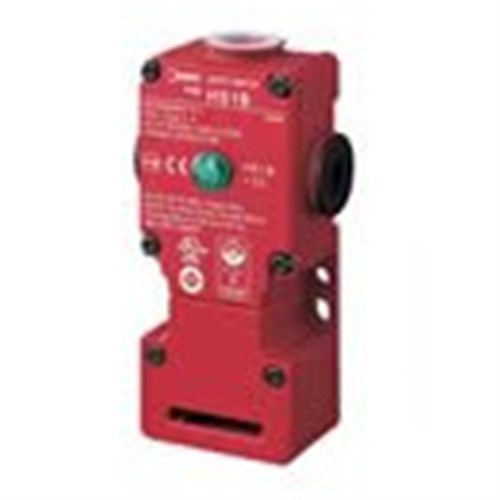

IDEC HS1B-024R-R Safety Interlock Switch 2NC

Product Code: HS1B-024R-R

  • Safety switch with 2NC contacts
  • Durable: 100,000 electrical cycles
  • IP67 rated for dust and water protection
  • Resilient to shocks up to 1000 ms
  • Handles vibrations from 10-55 Hz
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Interlock Switch
Brand
IDEC
Series
HS1B

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
10 A
Rated Voltage (Ur)
30 V, 125 V, 250 V
Terminal Type
Screw terminals

Mechanical

Cable Entry
G1/2 conduit (x3 ports)
Housing Material
Die-cast aluminium

Dimensions & Physical Data

Depth
40 mm
Height
125 mm
Weight
280 g
Width
64 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
