Product Code: HG5G-VFXT22MF-B

15" TFT Colour LCD for clear display
Operates in -20 to 60°C environments
IP66/IP67 rated for robust protection
Multiple interfaces: COM, LAN, USB, SD

Specifications

General

Product Type

HMI

Brand

IDEC

Series

HG series

Electrical

Channel Isolation 1,000V AC between power and FG terminals	Power Consumption 25W	Supply Voltage 24V DC
Sunlight Readable Yes (Super Bright 650 cd/m²)	Touch Type Analog resistive membrane

Mechanical

Mounting Method

Panel Mount

Display Colour

65,536 colors

Dimensions & Physical Data

Depth 54.8 mm	Height 291.5 mm	Width 364.5 mm
Panel Cut-Out Size 352.0 x 279.0 mm	Display Size 15 inch

Environmental

Storage Temperature

-20 to 70°C

Operating Temperature

-20 to 60°C

IP Rating

IP66F/IP67F

Communication & Control

Ethernet Ports 1	Expandable Communications Up to 4 Expansion Modules (discrete/analog I/O)	Fieldbus Interface Supports Ethernet-based and serial fieldbuses
Serial Ports 2	USB Port 1	Supported Ethernet Protocols FTP, Email, Web Server, BACnet/IP, Modbus TCP/IP
Supported Serial Protocols Over 100 protocols supported; Modbus RTU

Safety, Standards & Compliance

Compliance Standards

CE, UL61010, TUV, CSA

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer (WindO/I-NV4)

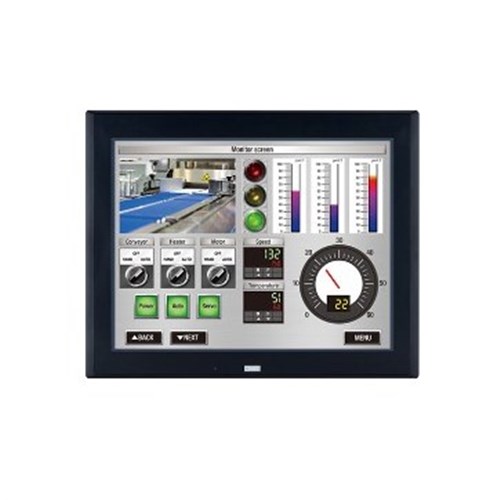

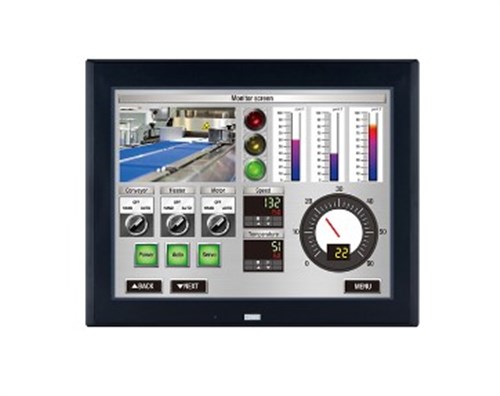

IDEC HG5G-VFXT22MF-B Operator Interface HMI 15in TFT Colour LCD 24VDC
