Specifications

Product Type

HMI

Brand

IDEC

Series

Channel Isolation 1,000V AC between power and FG terminals	Power Consumption 25W	Supply Voltage 24V DC
Sunlight Readable Yes (Super Bright 600 cd/m²)	Touch Type Analog resistive membrane

Display Colour/Type

65,536 colors

Depth 54.1mm	Height 240mm	Width 314mm
Panel Cut-Out Size 301.5 x 226.5mm	Display Size 12.1 inch

Storage Temperature

-20°C to 70°C

Operating Temperature

-20°C to 60°C

IP Rating

IP66F/IP67F

Ethernet Ports 1	Expandable Communications Up to 4 Expansion Modules (discrete/analog I/O)	Fieldbus Interface Supports Ethernet-based and serial fieldbuses
Serial Ports 2	USB Port 1	Supported Ethernet Protocols FTP, Email, Web Server, BACnet/IP, Modbus TCP/IP
Supported Serial Protocols Over 100 protocols supported; Modbus RTU

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, UL 61010, TUV, CSA

Development Software

Automation Organizer (WindO/I-NV4)

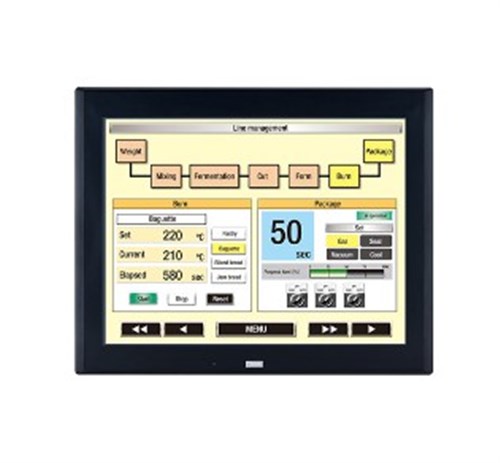

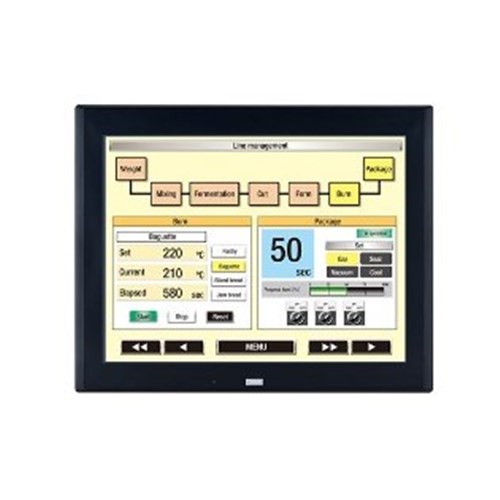

IDEC HG4G-VCXT22MF-B Operator Interface HMI 12in TFT Colour LCD 24VDC
