Product Code: HG3G-VAXT22MF-B

10.4" TFT colour LCD for clear visuals
Operates at -20 to 60°C, versatile use
IP66/IP67 rated for robust protection
Efficient 25W power consumption
Reliable 24 VDC voltage operation

Specifications

General

Product Type

Operator Interface

Brand

IDEC

Series

HG series

Electrical

Power Consumption 25 W	Supply Voltage 24V DC	Terminal Type Screw Terminals
Sunlight Readable No	Touch Type Resistive analog

Mechanical

Mounting Method

Panel Mounting

Display Colour

Color

Dimensions & Physical Data

Depth 52.7 mm	Height 212 mm	Width 270 mm
Panel Cut-Out Size 200 H mm x 258 W mm	Display Size 10.4 inch

Environmental

Storage Temperature

-20 to +70°C (no freezing)

Operating Temperature

-20 to +60°C(no freezing)

IP Rating

IP66F

Communication & Control

Ethernet Port Speed 10 Mbps/ 100 Mbps	Ethernet Ports RJ-45	Expandable Communications MicroSmart I/O module interface
Serial Ports 2 (RS232, RS485, RS422)	USB Port 1 Type A/1 MiniB

Safety, Standards & Compliance

Compliance Standards

UL61010-1, UL61010-2-201, UL12.12.01CSA C22.2 No.61010-1-12CSA C22.2 No.61010-2-201CSA C22.2 No.214

Hazardous Location Ratings

Type 4X, 12, and 13Class I Div 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suite (Includes WindLDR (for PLCs), WindO/I-NV2 (for HMIs),WindO/INV4 (new HG2G) and WindCFG (system configuration tool)

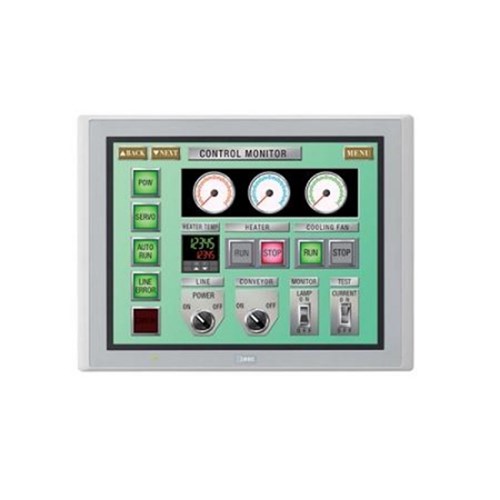

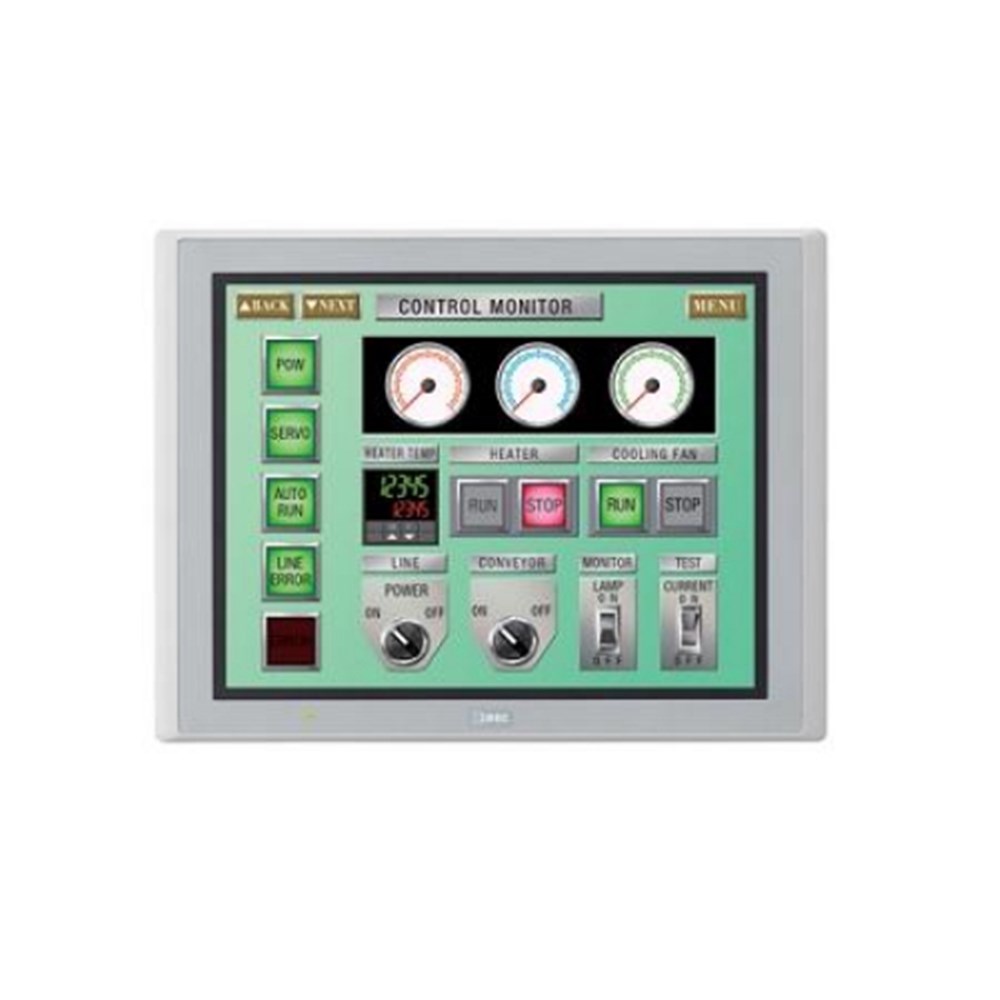

IDEC HG3G-VAXT22MF-B Operator Interface HMI 10.4 in TFT Colour LCD 24VDC
