Product Code: HG3G-V8XT22MF-B

8.4" TFT Colour LCD for clear visuals
Operates in -20 to 60°C environments
Multiple interfaces: COM, LAN, USB, SD
Efficient 25W power consumption

Specifications

General

Product Type

Operator Interface

Brand

IDEC

Series

HG series

Electrical

Power Consumption 25 W	Supply Voltage 24V DC	Terminal Type Screw Terminals
Sunlight Readable No	Touch Type Resistive analog

Mechanical

Mounting Method

Panel Mounting

Display Colour

Color

Dimensions & Physical Data

Depth 54.4 mm	Height 176 mm	Width 231 mm
Panel Cut-Out Size 164 H mm x 219 W mm	Display Size 8.4 inch

Environmental

Storage Temperature

-20 to +70°C (no freezing)

Operating Temperature

-20 to +60°C(no freezing)

IP Rating

IP67F

Communication & Control

Ethernet Port Speed 10 Mbps/ 100 Mbps	Ethernet Ports RJ-45	Expandable Communications MicroSmart I/O module interface
Serial Ports 2 (RS232, RS485, RS422)	USB Port 1 Type A/1 MiniB

Safety, Standards & Compliance

Compliance Standards

UL61010-1, UL61010-2-201, UL12.12.01CSA C22.2 No.61010-1-12CSA C22.2 No.61010-2-201CSA C22.2 No.213

Hazardous Location Ratings

Type 4X, 12, and 13Class I Div 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suite (Includes WindLDR (for PLCs), WindO/I-NV2 (for HMIs),WindO/INV4 (new HG2G) and WindCFG (system configuration tool)

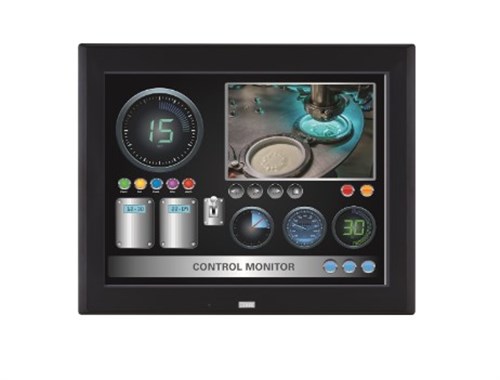

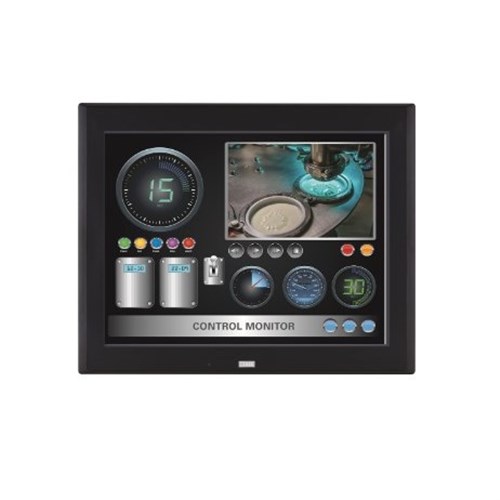

IDEC HG3G-V8XT22MF-B Operator Interface HMI 8.4 in TFT Colour LCD 24VDC
