Product Code: HG2J-7UT22TF-B

7" TFT colour LCD for clear visuals
Wide voltage range: 12-24 VDC
IP66 rating for robust protection
Operates in -20 to 60°C conditions
Panel mount design for easy installation

Specifications

General

Product Type

HMI

Brand

IDEC

Series

HG series

Electrical

Power Consumption 13W	Supply Voltage 12/24V DC	Terminal Type Push-in Terminals
Sunlight Readable No (500 cd/m² )	Touch Type Projected Capacitive

Mechanical

Housing Material

Plastic

Mounting Method

Panel mount

Display Colour

65,536 colors

Dimensions & Physical Data

Depth 30.4 mm	Height 128 mm	Width 186 mm
Panel Cut-Out Size 176.6 x 118.6 mm	Display Size 7.0-inch

Environmental

Storage Temperature

-20 to 70°C

Operating Temperature

-20 to 60°C

IP Rating

IP66F/IP67F

Communication & Control

Ethernet Port Speed 10BASE-T / 100BASE-TX	Ethernet Ports 1	Expandable Communications Yes (via USB Wi-Fi dongle)
Fieldbus Interface Modbus TCP, Modbus RTU/ASCII	Serial Ports 1	USB Port 2
Supported Ethernet Protocols EtherNet/IP, Modbus TCP, MQTT, Email, FTP, Web Server	Supported Serial Protocols Modbus RTU/ASCII

Safety, Standards & Compliance

Compliance Standards

UL 61010-1/2-201, UL 121201, CSA C22.2

Hazardous Location Ratings

Class I Division 2, Groups A, B, C, D

Accessories & Additional Information

Development Software

Automation Organizer (WindO/I-NV4)

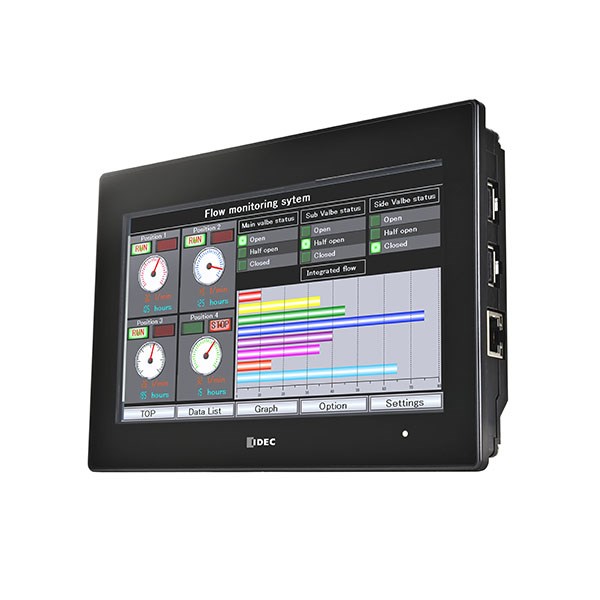

IDEC HG2J-7UT22TF-B Operator Interface HMI 7in TFT Colour LCD (TN Type) 12-24VDC
