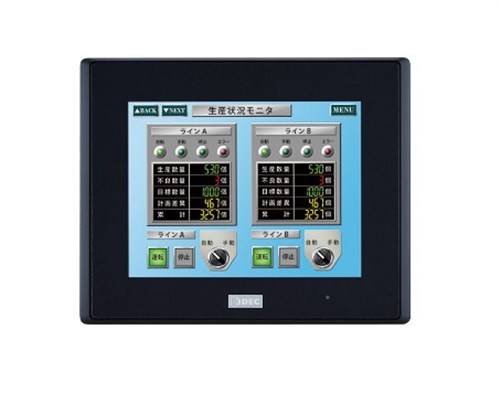

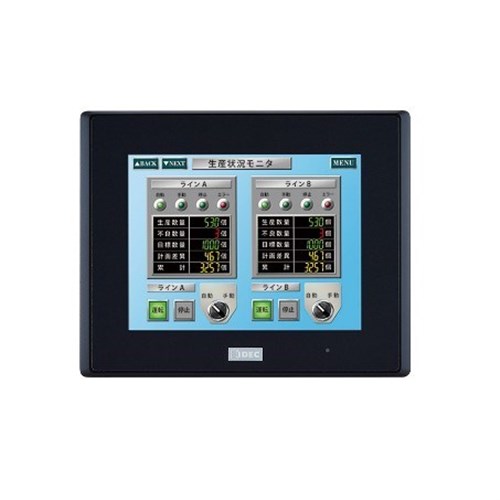

Product Code: HG2G-V5FT22TF-B

5.7" TFT Colour LCD display
Operates on 20.4-28.8 VDC
Multiple interfaces: COM, LAN, USB, SD
Efficient 18 W power usage

Specifications

General

Product Type

Touchscreen HMI

Brand

IDEC

Series

HG series

Electrical

Power Consumption

18 W max

Supply Voltage

24V DC

Touch Type

Analog resistive

Mechanical

Mounting Method

Panel

Display Colour

TFT Color LCD (65,536 colors)

Dimensions & Physical Data

Depth 54.4 mm	Height 134.7 mm	Width 167.2 mm
Panel Cut-Out Size 121mm x 153 mm	Display Size 5.7 inch

Environmental

Storage Temperature

-20 to +70°C

Operating Temperature

-20 to +60°C

IP Rating

IP66F / IP67F

Communication & Control

Ethernet Ports 1	Serial Ports 2	USB Port 2
Supported Serial Protocols RS-232, RS-485, RS-422

Safety, Standards & Compliance

Compliance Standards

UL61010-1, UL61010-2-201, UL12.12.01 CSA C22.2 No.61010-1-12 CSA C22.2 No.61010-2-201 CSA C22.2 No.213

Hazardous Location Ratings

Class I Div 2

Accessories & Additional Information

Development Software

Automation Organizer

IDEC HG2G-V5FT22TF-B Operator Interface HMI 5.7in TFT Colour LCD 20.4-28.8VDC
