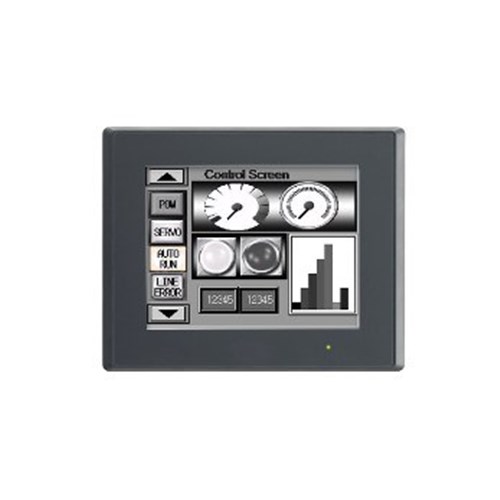

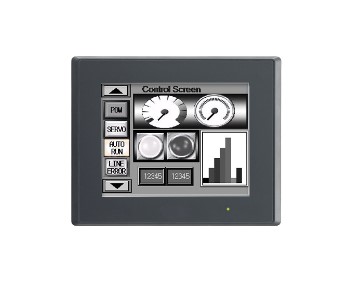

Product Code: HG2G-5TN22TF-B

5.7" TFT Monochrome LCD display
Operates on 12-24 VDC power
Dark grey touch screen interface
COM, LAN, USB1 & USB2 connectivity

Specifications

General

Product Type

Operator Interface

Brand

IDEC

Series

HG series

Electrical

Power Consumption 8W	Supply Voltage 12-24V DC	Terminal Type Removable 19-pin connector
Sunlight Readable Yes (1100 cd/m² )	Touch Type Analog resistive membrane

Mechanical

Mounting Method

Panel mount

Display Colour

Monochrome (16 shades)

Dimensions & Physical Data

Depth 40.9 mm	Height 134.7 mm	Width 167.2 mm
Panel Cut-Out Size 153.0 mm x 121.0 mm	Display Size 5.7-inch

Environmental

Storage Temperature

-20 to 70°C

Operating Temperature

-20 to 60°C

IP Rating

IP66F

Communication & Control

Ethernet Port Speed 10/100 Mbit	Ethernet Ports 1	Expandable Communications O/I Link Communication
Fieldbus Interface Ethernet, Serial, O/I Link	Serial Ports 2	USB Port 2
Supported Ethernet Protocols IDEC Web Server, Allen Bradley EtherNet/IP, Modbus TCP/IP, FTP, Email, BACnet/IP	Supported Serial Protocols IDEC, Modbus RTU, and major PLC brands (Allen Bradley, Mitsubishi, Siemens, etc.)

Safety, Standards & Compliance

Compliance Standards

cUL, UL, Type 4X, Type 13

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer

IDEC HG2G-5TN22TF-B Operator Interface HMI 5.7in TFT Monochrome LCD 12-24VDC
