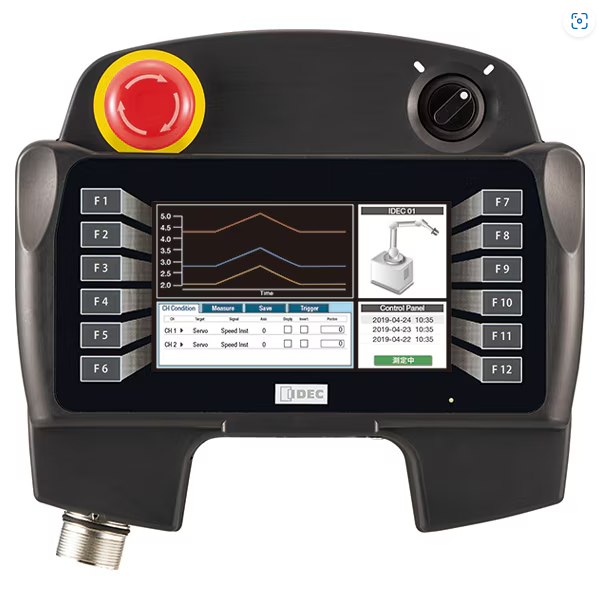

IDEC HG1P SERIES OPERATOR INTERFACE HANDHELD HMI HG1P-ST32YBFH-B0

Product Code: HG1P-ST32YBFH-B0

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Interface Hand - Held Model
Brand
IDEC
Series
HG

Electrical

Input Ratings
Up to 30V DC, 1A
Input Type
Switch inputs
Power Consumption
3W max.
Supply Voltage
24V DC
Terminal Type
Removable 19-pin connector
Touch Type
Analog resistive membrane

Mechanical

Display Colour/Type
65536 Colors

Dimensions & Physical Data

Depth
56mm
Height
168.9mm
Width
191mm
Display Size
4.3 inch

Environmental

Storage Temperature
-10°C to 60°C
Operating Temperature
0°C to 45°C
IP Rating
IP54F

Communication & Control

Fieldbus Interface
RS422/485 / Modbus (via serial)
Serial Ports
1
USB Port
2

Safety, Standards & Compliance

Certifications / Approvals
UL 61010-1 UL 61010-2-201 CSA C22.2 No.61010-1 (c-UL) CSA C22.2 No.61010-2-201 (c-UL)

Accessories & Additional Information

Development Software
Automation Organizer
