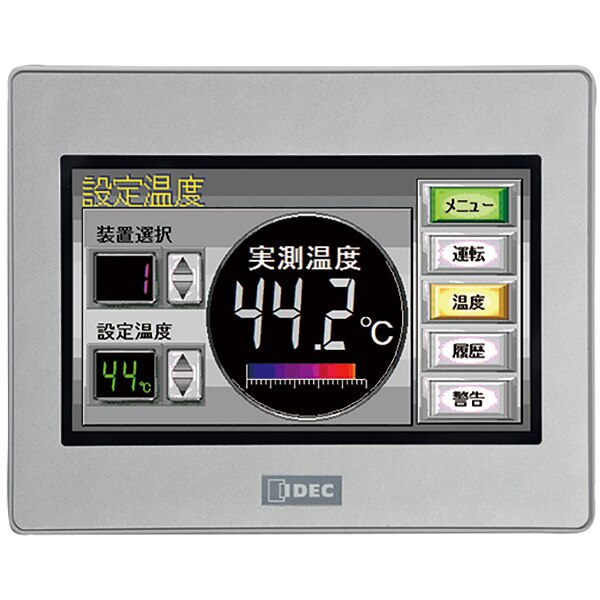

IDEC HG1G-4VT22TF-S Operator Interface HMI 95 mm W x 53.8 mm H TFT Colour LCD 10.2-28.8VDC

Product Code: HG1G-4VT22TF-S

  • Operates on 10.2-28.8 VDC with 8 W power
  • TFT Colour LCD with 480x272 resolution
  • Compact display: 95mm x 53.8mm
  • Withstands -20 to 55°C operational temp
  • Durable against shock and vibration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Interface
Brand
IDEC
Series
HG

Electrical

Power Consumption
8W
Supply Voltage
12V to 24V DC
Sunlight Readable
Yes (800 cd/m²)
Touch Type
Analog resistive membrane

Mechanical

Display Colour/Type
65536 Colors

Dimensions & Physical Data

Depth
31.8mm
Height
102mm
Width
128mm
Panel Cut-Out Size
118 x 92mm
Display Size
4.3-inch

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-20°C to 55°C
IP Rating
IP66F/IP67F

Communication & Control

Ethernet Port Speed
10/100 Mbit
Ethernet Ports
1
Serial Ports
2
USB Port
2
Supported Ethernet Protocols
Modbus TCP (Client/Server), FTP Server, Ethernet/IP, and various manufacturer-specific drivers
Supported Serial Protocols
Modbus RTU

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
UL 508
